15% Off MSRP

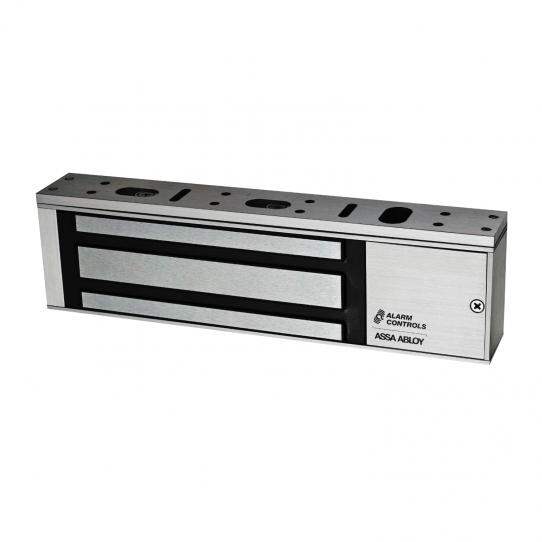

1200S 1200lb Single Magnetic Lock by Alarm Controls

$215.05 ~~$253.00~~

Overview

Alarm Controls Corporation 1200 pound Single Magnetic Lock, model 1200s. The 1200s provides a minimum of 1200 pounds holding force and utilizes the ACC E-Z mount system for easy installation.

Features:

12 or 24VDC, jumper selectable
E-Z mount system, No special tools required
U.L. and Canadian U.L. Listing number R16759
Includes Manual, Armature Plate and Mounting Hardware For Basic Out-swing Applications.

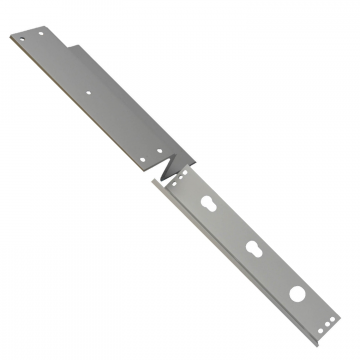

** In-Swing applications of this maglock require a Z bracket (available below)

1200s, 1200lb Single Magnetic Lock by Alarm Controls

Product Overview

Alarm Controls Corporation's 1200 pound Single Magnetic Lock, model 1200s. The 1200s provides a minimum of 1200 pounds holding force and utilizes the ACC E-Z mount system for easy installation. The 1200s is 12 or 24 VDC, jumper selectable and can be used with any access control system.

Product Features

1200 pound minimum holding force
E-Z mount system, No special tools required

Dimensions

Magnet size: 10 1/2 inches L x 2 7/8 inches H x 1 1/2 inches W
Armature size: 7 3/8 inches L x 2 3/8 inches W x 9/16 inches D

Power

12 or 24 VDC, jumper selectable
Low current draw: 505 Milliamperes @ 12 VDC, 260Milliamperes @ 24 VDC
Built-in Arc Suppression
Instant Release, No hysteresis

Certification

UL 294 listed
UL 10C fire rated
CAN/ULC-S104 fire door conformant
UL 864 listed
CAN/ULC-S527 listed

Compatibility

The 1200s can be used with any access control system

Finish

Non-Aluminum parts are plated to resist corrosion
Clear Anodized (US28) finish is standard

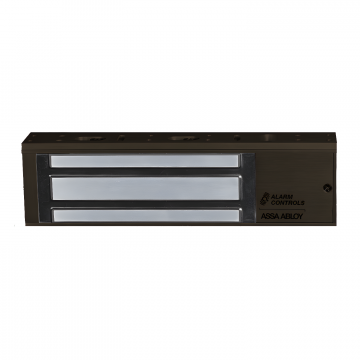

Duronic (US40) is available under "Related Products"

Warranty

Lifetime Warranty

Also Known As

1200s, 1200S, ALA3001200S

Finish

(selectable)

Manufacturer

Alarm Controls

Manufacturer Warranty

Lifetime

Model Number

1200s

Power Requirements

24VDC/12VDC

Status Monitor

Not Available

UPC Code

700604241105

Datasheet PDF

Installation PDF

1 Question asked on 1200S 1200lb Single Magnetic Lock by Alarm Controls • Ask a Question

Q Kristen Serdinsky • 01/10/2022, 12:05:43 PM Please provide a summary of how this product works. Is the magnetic locking mechanism the controller for the ability to lock the restroom automatically, at dusk, and to open again in the morning? If so, can you provide details on how this is operated and controlled. The presumption is that the facility is locked, and cannot be accessed from the outside after sunset but if inside, you can exit. can you provide operational details.

A 01/12/2022, 4:11:52 PM The 1200S is just a magnetic lock. It does not include any control devices or a power supply. For a complete Restroom Locking solution please search our store for "Restroom Kit" or give us a call and we would be happy to assist, 1-866-500-5625
