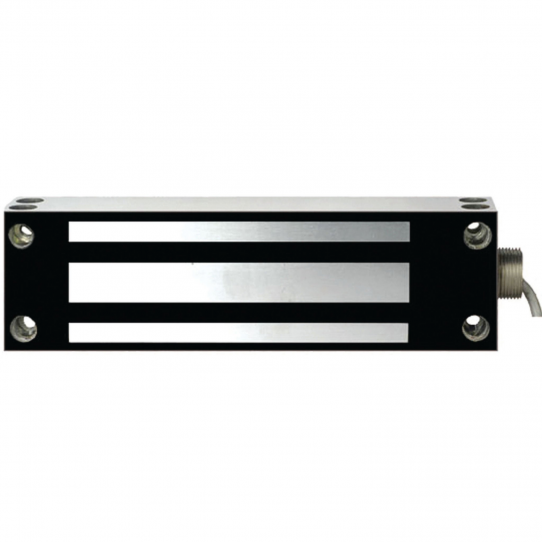

1200WP Weather Magnetic Gate Lock by Alarm Controls

$327.25 ~~$385.00~~

Overview

Alarm Controls Corporation 1200 pound Weather-proof Single Magnetic Gate Lock, model 1200WP. The 1200WP provides a minimum of 1200 pounds holding force, provides weatherproof design ideal for sliding and swinging gates.

Features:

Ideal for sliding or swinging gates
Built in conduit fitting
1200lbs holding force
12/24vdc operation
Completely sealed in stainless steel case

1200WP 1200lb Weather-proof Single Magnetic GateLock

Product Overview

Alarm Controls Corporation 1200 pound Weather-proof Single Magnetic Gate Lock, model 1200WP.

The 1200WP provides a minimum of 1200 pounds holding force, provides weatherproof design ideal for sliding and swinging gates.

Product Features

10 inch color coded wire leads in plastic jacket
Non-aluminum parts are plated to resist corrosion
Completely sealed in stainless steel case
Use 23/64 inch diameter drill for blind nuts provided with lock
Self drilling TEC screws
Limited lifetime warranty

Specifications

1200 lbs holding force
Magnet size: 9-1/16 inch L x 2-5/8 inch H x 1-1/16 inch D
Armature size: 7-9/32 inch L x 2-5/8 inch H x 5/8 inch D
Operates on 12 or 24 VDC
Current draw: 500 mA 12 VDC, 250 mA at 24 VDC
Operating temperature: +14 to +131F [-10 to +55C]
1/2 inch I.D. and 3/4 inch O.D. conduit fittings

Also Known As

1200wp, 1200WP, ALA3001200WP

Finish

Stainless Steel

Manufacturer

Alarm Controls

Manufacturer Warranty

Lifetime

Model Number

1200WP

Power Requirements

24VDC/12VDC

Status Monitor

Not Available

UPC Code

604840848756

Datasheet PDF

Installation PDF

2 Questions asked on 1200WP Weather Magnetic Gate Lock by Alarm Controls • Ask a Question

Q Greg Stewart • 05/07/2019, 5:06:44 PM what do you have for a outdoor rated mag lock for a gate that's made in the USA

A 04/22/2020, 12:04:17 PM Here are a few Made in the USA weatherized gate-lock options. Dynalock (part# 2013), Securitron (part# GL1), SDC (part# GL160/GL260)

Q vOvOLTAGEHAS;DLFJABryan K Carlisle • 04/21/2020, 12:06:03 PM We are trying to design an gate lock for an Antenna System. The Antenna System has a 28VDC interlock output that I need to connect to a key lock that would turn off the voltage to deactivate the magnetic, which would shutdown the RF and Power to the Antenna. Can I supply the 28VDC to the magnetic without a problem.

A 04/22/2020, 10:42:47 AM The lock is designed for 12 or 24 VDC operation. At 28VDC I would recommend a power regulator. See product (VSM-12) https://www.maglocks.com/12-vdc-voltage-regulator-module.html That device would regulate a (12-28VDC) input, to a 12VDC output.
