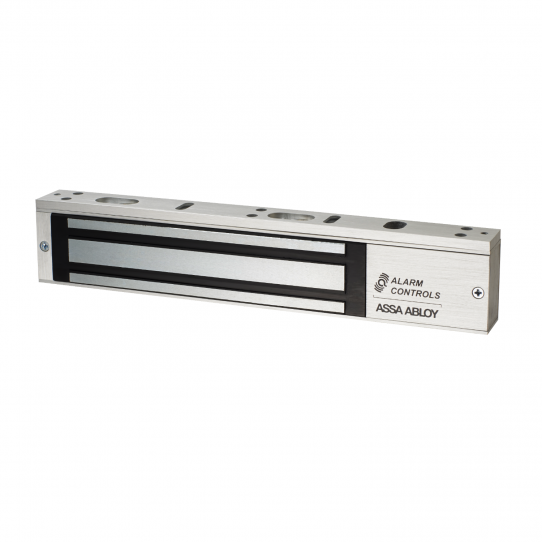

600s, 600lb Holding Force Single Magnetic Lock
$180.20
$212.00
Overview
Alarm Controls Corporation's 600 pound Single Magnetic Lock, model 600s. The 600s provides a minimum of 600 pounds holding force and utilizes the ACC E-Z mount system for easy installation. The 600s is 12 or 24 VDC, jumper selectable and can be used with any access control system.
Features:
- 600lbs holding force
- E-Z mount system, No special tools required
- U.L. and Canadian U.L. Listing number R16759
- Includes Manual, Armature Plate and Mounting Hardware For Basic Out-swing Applications.
** In-Swing applications require a Z bracket (available below)
Product Details
600s, 600lb Single Magnetic Lock by Alarm Controls
Product Overview
Alarm Controls Corporation's 600 pound Single Magnetic Lock, model 600s. The 600s provides a minimum of 600 pounds holding force and utilizes the ACC E-Z mount system for easy installation. The 600s is 12 or 24 VDC, jumper selectable and can be used with any access control system.
Product Features
- 600lbs holding force
- E-Z mount system, No special tools required
Dimensions
- Magnet size: 9 7/8 inches L x 1 11/16 inches H x 1 inch W
- Armature size: 7-1/4 inches L x 1 1/2 inches H x 1/2 inches W
Power
- 12 or 24 VDC, jumper selectable
- Current draw: 505 mA @ 12 VDC, 260 mA @ 24 VDC
- Built-in Arc Suppression
- Instant Release, No hysteresis
Certification and Lisitng
- UL 294 listed
- UL 10C fire rated
- CAN/ULC-S104 fire door conformant
- UL 864 listed
- CAN/ULC-S527 listed
Compatibility
- The 600s can we used with any access control system
Finish
- Non-Aluminum parts are plated to resist corrosion
- Clear Anodized (US28) finish is standard
- Duronic (US40) is available for special order
- Dress-up covers in polished chrome and brass are available. Give us a call
Warranty
- Lifetime Warranty
Also Known As
600s, 600S, ALA300600SFinish
AluminumManufacturer
Alarm ControlsManufacturer Warranty
LifetimeModel Number
600sPower Requirements
24VDC/12VDCStatus Monitor
Not AvailableUPC Code
604840236416
2 Questions asked on 600s, 600lb Holding Force Single Magnetic Lock •
Q
Chase Lewis • 05/27/2022, 12:36:35 PM
Was curious of how these mag locks are controlled. Is it simply 2 wires supplying 24V and ground? And controlling it simply a matter of controlling that 24V signal? Just wanted to confirm.
A
05/31/2022, 12:04:26 PM
Correct, the lock will require a 2-wire connection (+ & -) either 12VDC or 24VDC input. Typically you would keep the (-) connection constant and then switch the (+) wire through various control devices like buttons, keypads, motion sensors, etc. For further assistance with building a complete system please give us a call direct at 1-866-500-5625
Q
greg cheng • 03/07/2024, 2:48:34 PM
WANT TO CONFIRM IF BACKUP BATTERY IS INCLUDED IN CASE OF POWER OUTAGE.
A
03/08/2024, 10:40:25 AM
The 600S would be just the magnetic lock as shown in this product listing. A low-voltage power supply (12 or 24VDC) would be required and are sold separately. Please see the "Related Products" listed below for potential options or give us a call and we would be happy to assist, 1-866-500-5625
