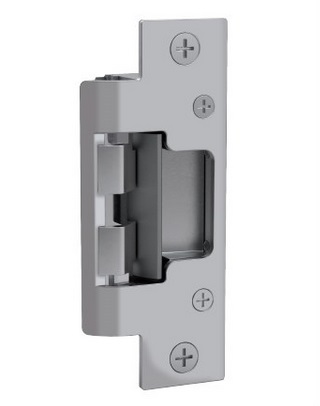

8000 Series Electric Strike, 630 Dull Stainless Gr 1
Overview
The concealed electric strike solution for cylindrical locksets
The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. There is no cutting on the frame and vertical adjustability accomodates door sag and misalignment.
This listing is for 630 Dull stainless finish if another finish is required please call to order.
Product Details
Concealed electric strike solution for cylindrical locksets
The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. There is no cutting on the frame and vertical adjustability accomodates door sag and misalignment.
* Note: The change in model number from 5900 to 8000 highlights the increased compatibility of this premium line. Updated to ensure frame clearance in an even greater selection of frames, this product now fits within an ANSI frame prep set at all hinge and door spacings per SDI-129-04 with no frame interference.
Specifications
- UL 1034, burglary-resistant listed
- ANSI/BHMA A156.31, Grade 1
- Patent #5,934,720; 8,146,966; 8,157,302
Frame application
- Metal
- Wood
Electrical
- .24amps @ 12VDC/VAC
- .12amps @ 24VDC/VAC
- DC continuous duty/AC intermittent duty only
Standard Features
>- No cutting on frame required
- Vertical adjustability to accommodate door sag and misalignment
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail safe/fail secure
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2 inch - 5/8 inch cylindrical latchbolt (5/8 inch with 1/8 inch door gap)
- Strike body depth 1-1/16 inch
- NEW! Strike body width decreased to 1-7/16 inch to increase frame compatibility
- Five year limited warranty
Optional Features
- 8000LBM - Latchbolt monitor
