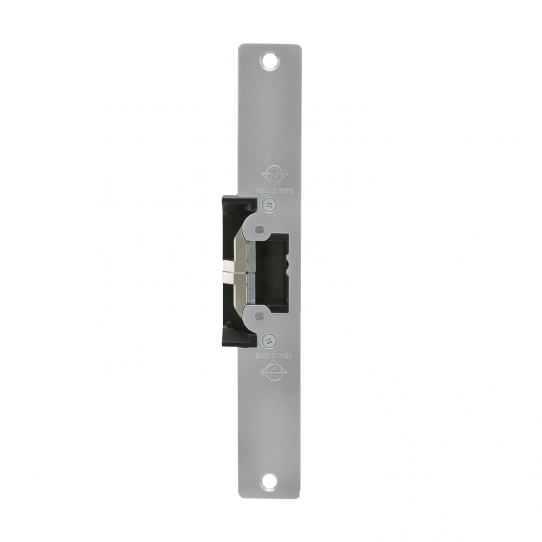

Adams Rite 7410, 7411 Strike, Wood, Steel Doors, Gr 1
Overview
Designed for standard Key-in-Knob/Lever locksets, Adams Rite Mortise Exit Devices and Adams Rite Deadlatchs.
Features:
• One Ton Jaw Strength
• Low Current Draw
• UL Listed for Burglary Resistance
• Compact Strike Body
• Field-Reversible for Fail-Safe/Secure
• Modular Faceplate Selection
• Tested to One Million Cycles
• Exceeds ANSI/BHMA Grade 1 standards
Product Details
Product Overview
Adams Rite is known around the world for durable and reliable door hardware. Our latest line of premium electric strikes, the UltraLine 7400 series, casts that reputation in solid steel. UltraLine Strikes feature an adjustable split-jaw design, and can operate with up to 30lbs. of door “preload” that can disable other electric strikes.
Model
- 7410: For Wood Jambs 1-7/16 inch x 7-15/16 inch faceplate with radius corners.
- 7410M - with monitor
- 7411: For Wood Jambs, Long Faceplate 1-7/16 inch x 10-1/4 inch faceplate with radius corners.
- 7411M - with monitor
Specifications
Field selectable voltage to match power source of 12, 16, or 24 VAC/VDC
- 12VDC 440mA 16VDC 458mA * Requires 16VDC adapter (P/N VA 7400-16VDC)
- 24VDC 230mA
- 12VAC 163mA
- 16VAC 228mA
- 24VAC 84mA
Options
- M - Latch bolt monitor
