20% Off MSRP

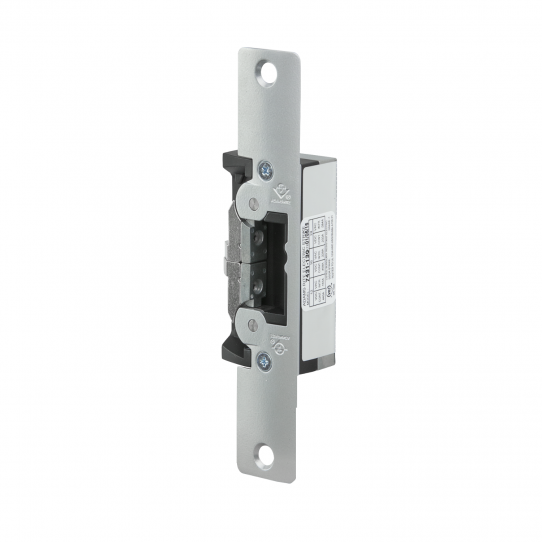

Adams Rite 7430, 7431 Strike, Aluminum Jambs or Stiles, Gr 1

$250.40 ~~$313.00~~

Overview

Designed for standard Key-in-Knob/Lever locksets, Adams Rite Mortise Exit Devices and Adams Rite Deadlatchs.

Features:
• One Ton Jaw Strength
• Low Current Draw
• UL Listed for Burglary Resistance
• Compact Strike Body
• Field-Reversible for Fail-Safe/Secure
• Modular Faceplate Selection
• Tested to One Million Cycles
• Exceeds ANSI/BHMA Grade 1 standards

Product Overview

Adams Rite is known around the world for durable and reliable door hardware. Our latest line of premium electric strikes, the UltraLine 7400 series, casts that reputation in solid steel. UltraLine Strikes feature an adjustable split-jaw design, and can operate with up to 30lbs. of door “preload” that can disable other electric strikes.

Model

7430: For Aluminum Jambs 1-1/4 inch x 6-7/8 inch faceplate with radius corners
7430M: with monitor
7431: For Radius Aluminum Stiles 1-1/4 inch x 6-7/8 inch faceplate with radius corners.
7431M: with monitor

Specifications

Field selectable voltage to match power source of 12, 16, or 24 VAC/VDC
12VDC 440mA 16VDC 458mA * Requires 16VDC adapter (P/N VA 7400-16VDC) 24VDC 230mA
12VAC 163mA
16VAC 228mA 24VAC 84mA

Options

M - Latch bolt monitor

Also Known As

ADA1007430628, 7430628, R8-7430628

For Use With

Cylindrical Locksets,Deadlatch

Grade

Grade 1

Manufacturer

Adams Rite

Manufacturer Warranty

3 Year

Model Number

7430/7431

Power Requirements

24V/12V AC/DC

Status Monitor

Optional

UPC Code

802063170993

Datasheet PDF

Installation PDF

1 Question asked on Adams Rite 7430, 7431 Strike, Aluminum Jambs or Stiles, Gr 1 • Ask a Question

Q Gary Justice • 07/23/2024, 8:15:09 PM I'm looking for a door strike that will work with QSCAN. Are power adapters included with the door strikes on your website?

A 07/26/2024, 11:26:26 AM These doors strikes can work with a wide range of Access Control systems that feature a lock control relay. We can also supply power supplies for 12vdc or 24vdc power if required. To ensure you get the correct strike for your application, please give us a call at 1-866-500-5625 and we would be happy to discuss in further detail.
