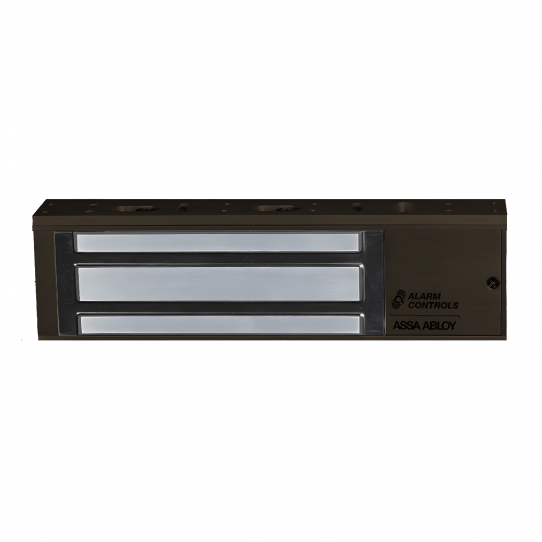

Alarm Controls 1200SDURO, Dark Bronze Magnetic Lock

$271.15 $319.00

Overview

Alarm Controls 1200 pound Single Magnetic Lock, model 1200s. The 1200s provides a minimum of 1200 pounds holding force and utilizes the ACC E-Z mount system for easy installation. The 1200s is 12 or 24 VDC, jumper selectable and can be used with any access control system.

Features:

  • 1200lbs holding force
  • E-Z mount system, No special tools required
  • U.L. and Canadian U.L. Listing number R16759
  • Includes Manual, Armature Plate and Mounting Hardware For Basic Out-swing Applications.

** In-Swing applications require a Z bracket (available below)

More Info +


Specify Model:

Qty

Product Details

1200SDURO, 1200lb Single Magnetic Lock by Alarm Controls, Dark Bronze finish

Product Overview

Alarm Controls Corporation's 1200 pound Single Magnetic Lock, model 1200SDURO. The 1200S provides a minimum of 1200 pounds holding force and utilizes the ACC E-Z mount system for easy installation. The 1200s is 12 or 24 VDC, jumper selectable and can be used with any access control system.

Product Features

  • 1200lbs holding force
  • E-Z mount system, No special tools required

Dimensions

  • Magnet size: 12 1/2 inches L x 2 7/8 inches H x 1 1/2 inch W
  • Armature size: 7 3/8 inches L x 2 3/8 inches H x 9/16 inches D

Power

  • 12 or 24 VDC, jumper selectable
  • Current draw: 505 mA @ 12 VDC, 260 mA @ 24 VDC
  • Built-in Arc Suppression
  • Instant Release, No hysteresis

Certification and Lisitng

  • UL 294 listed
  • UL 10C fire rated
  • CAN/ULC-S104 fire door conformant
  • UL 864 listed
  • CAN/ULC-S527 listed

Compatibility

  • The 1200SDURO can we used with any access control system
  • For installation on Outswing Doors (inswing doors will require AM6370 LZ bracket *sold separately)

Finish

  • Duronic (US40) Dark Bronze

Warranty

  • Lifetime Warranty
Also Known As
AC-1200SDURO, HES-1200SDURO
Manufacturer
Alarm Controls
Manufacturer Warranty
Lifetime
Model Number
1200SDURO
Power Requirements
24VDC/12VDC
UPC Code
604840236454
Usage
Interior Use Only
