Alarm Controls 600SDURO, Dark Bronze Magnetic Lock
Processing...

15% Off MSRP

Alarm Controls 600SDURO, Dark Bronze Magnetic Lock

$221.00 $260.00

Overview

Alarm Controls Corporation's 600 pound Single Magnetic Lock, model 600s. The 600s provides a minimum of 600 pounds holding force and utilizes the ACC E-Z mount system for easy installation. The 600s is 12 or 24 VDC, jumper selectable and can be used with any access control system.

Features:

  • 600lbs holding force
  • E-Z mount system, No special tools required
  • U.L. and Canadian U.L. Listing number R16759
  • Includes Manual, Armature Plate and Mounting Hardware For Basic Out-swing Applications.

** In-Swing applications require a Z bracket (available below)

More Info +


Specify Model:

Qty

Product Details

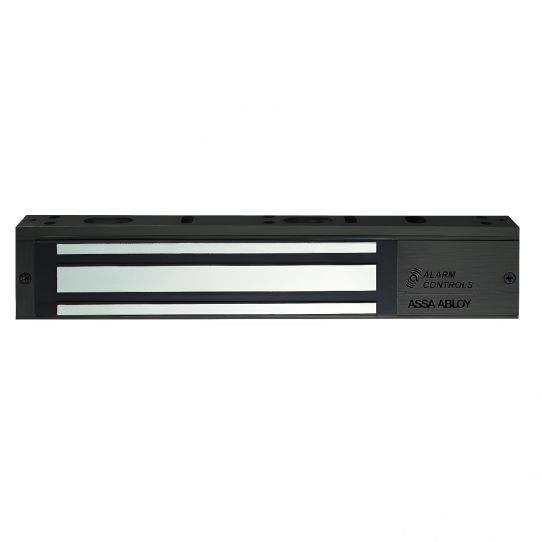

600SDURO, 600lb Single Magnetic Lock by Alarm Controls, Dark Bronze finish

Product Overview

Alarm Controls Corporation's 600 pound Single Magnetic Lock, model 600SDURO. The 600s provides a minimum of 600 pounds holding force and utilizes the ACC E-Z mount system for easy installation. The 600s is 12 or 24 VDC, jumper selectable and can be used with any access control system.

Product Features

  • 600lbs holding force
  • E-Z mount system, No special tools required

Dimensions

  • Magnet size: 9 7/8 inches L x 1 11/16 inches H x 1 inch W
  • Armature size: 7-1/4 inches L x 1 1/2 inches H x 1/2 inches W

Power

  • 12 or 24 VDC, jumper selectable
  • Current draw: 505 mA @ 12 VDC, 260 mA @ 24 VDC
  • Built-in Arc Suppression
  • Instant Release, No hysteresis

Certification and Lisitng

  • UL 294 listed
  • UL 10C fire rated
  • CAN/ULC-S104 fire door conformant
  • UL 864 listed
  • CAN/ULC-S527 listed

Compatibility

  • The 600SDURO can we used with any access control system
  • For installation on Outswing Doors (inswing doors will require AM3370 LZ bracket *sold separately)

Finish

  • Duronic (US40) Dark Bronze

Warranty

  • Lifetime Warranty
Also Known As
600SDURO, AC-600SDURO, HES-600SDURO
Manufacturer
Alarm Controls
Manufacturer Warranty
Lifetime
Model Number
600SDURO
Power Requirements
24VDC/12VDC
Status Monitor
Not Available
UPC Code
604840236492
Usage
Interior Use Only
