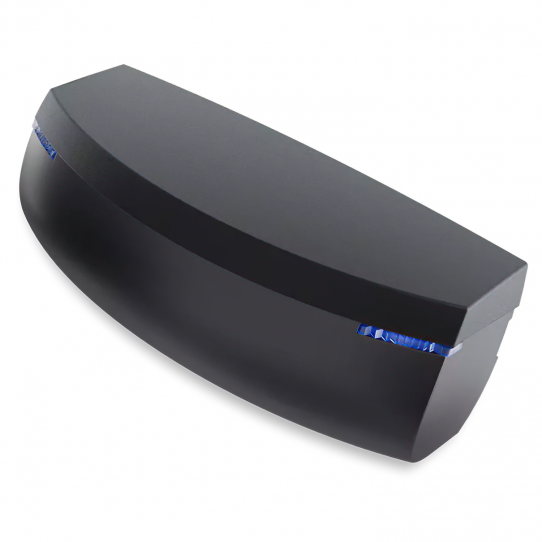

BEA, 10EAGLEARTEK Compact Motion Sensor for Automatic Doors, IP54
Overview
Compact, motion sensor for automatic doors
BEA’s EAGLE ARTEK is a motion sensor for all types of automatic doors. Its slim and compact design ensures discreet integration for your application.
EAGLE ARTEK offers superior field performance with improved filters that help to reduce false detections that lead to increased energy costs.
Product Details
Description
Compact, motion sensor for automatic doors
BEA’s EAGLE ARTEK is a motion sensor for all types of automatic doors. Its slim and compact design ensures discreet integration for your application.
EAGLE ARTEK offers superior field performance with improved filters that help to reduce false detections that lead to increased energy costs.
This sensor is easy to install and set up with flexible parameters and simple push-button settings. Unlike legacy sensors, the detection field can be adjusted without changing the antenna manually.
Technical Specifications
- Supply Voltage: 12V to 24V AC/DC
- Sensor Technology: Microwave
- Detection Mode: Motion
- Transmitter Freqency: 24.150 GHz
- Transmitter power density: < 5 mW/cm²
- Relay: NO or NC programmable using 10REMOTE (*sold separately)
- Relay: 30VAC / 42 VDC, 100mA max (resistive)
- Mounting height: 6 to 13 ft
- Degree of Protection: IP54
- Temperature range: -4º F to +131º F
- Cable Length: 8 ft
Models
- 10EAGLEARTEK: Compact Microwave Motion sensor, Standard Mounting Height, 6 to 13 feet
*same mounting references and plug-in interface accessory make it easy to retrofit EAGLE
