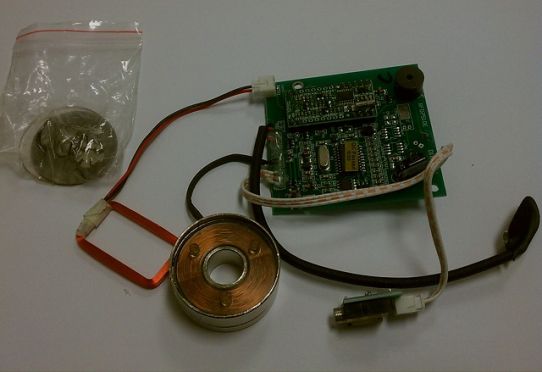

BO-RF8500 circuit board, RF-C8500 and RF-M8500 Lock
$69.00
Overview
The BO-RF8500 board is an original equipment replacement circuit board for the RF-C8500 and the RF-M8500 Hotel lock
* * Replacement Part * *
Compatible lock models:
• RF-C8500
• RF-M8500
Product Details
The BO-RF8500 board is an original equipment replacement circuit board for the RF-C8500 and the RF-M8500 Hotel lock
Specifications
- Power: 6v (4 segments 1.5 voltage batteries)
- Static Electric Current: IC touched card lock < 10μA IC touched card lock+electromagnetic lock < 10μA Reaction card lock < 50μA
- Working Electric Current: 100-300mA
- Keeping Record: 250pieces data can be reserved more than 10 years
- Touched IC card: one hundred thousand (100,00) time use
- Battery Life: 12 months in normal status
- Open Time: 5 seconds
- Insert Reliability: Tested continuously over 2,000 consecutive times without an error
- Insert Guarantee: illegal card use will not alter performance
- Low Voltage Warning: If the CPU working voltage is less than 4.5 V, it will alert “di di” tone with the red light flashing when opening door.
- Capability Resists Static: >15000V
- Relative Range(use): 20%-98%
- Temperature Range(Using): -20?—+70?
- Temperature Range(Storage): -25?—+85?
