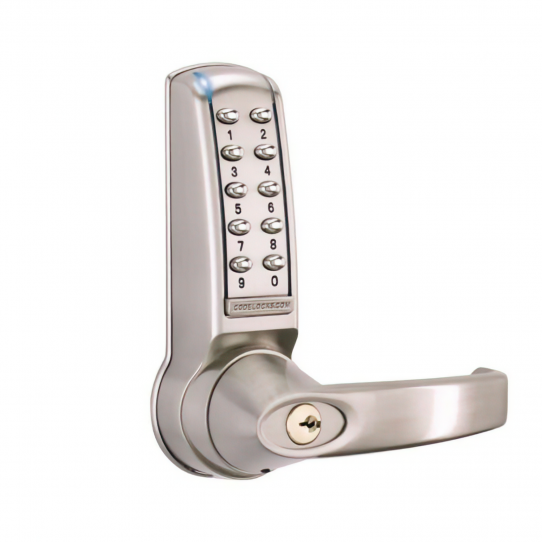

CL4210 Codelocks Electronic Cylindrical Latchbolt Lock
Overview
The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long. Programming is via the keypad, using the Master Code. The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code.
This lock is perfect for wine cellars, utility rooms, storage rooms, offices, server rooms, break rooms, employees only doors and other mediums to low traffic applications.
Product Details
Product Overview
The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long.Programming is via the keypad, using the Master Code. The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code.
Features
- Tubular / Cyindrical Latch
- 80 users / PIN code memory
- Includes 2 deadlatches to fit 2-3/8" and 2-3/4" backsets.
- Over 200,000 operations from 4 x AA cells (supplied)
- Password and card users can be deleted individually for easy management.
- US Standard Cylinder. Easy replacement if mechanical key is lost.
Technical Specifications
- Brand: Codelocks
- Body Material: Zinc Alloy
- Buttons: Individual, stainless steel
- Door thickness: 35mm - 60mm (1 3/8" - 2 3/8")
- Finish: Stainless steel, polished brass
- Keypad: 2 x 5
- Key override: Yes
- Non handed: Lock will fit doors hung on the left or right
- Power: 4 x AA cells
- Spindle type: 8mm (5/16") spring loaded spindle
- Storeroom function: Yes
- Suitable for: Internal and external use
- Type: Cylindrical Single Latch
- Operations: 200,000
