Complete Single Door Magnetic Lock kit

Product Overview

Single door access control system includes a magnetic lock (600lbs or 1200lbs), PIN/Prox reader for entry, Request to Exit devices and Power Supply with battery backup.

The remote release button can be wired to allow door release from almost anywhere in the building.

Power supply with battery backup ensures your door remains secure and all system components remain operational in the event of a power failure.

Features

• PIN, Prox card or PIN + Prox card entry
• 2000 user capacity
• All programming is done through the keypad
• 1 form C relay
• Electronics are epoxy sealed, IP68 rated (will accept PIN codes and Prox cards while completely submerged in up to 1 meter of water)
• Metal vandel resistant construction, includes security screws and built in anti-tamper alarm
• 5 PCS-1 Prox cards included with keypad purchase

Specifications

• Single Gang Keypad Dimensions: 4-3/4 inches L x 3-1/8 inches W x 1 inch D
• Narrow Keypad Dimensions: 4-3/4 inches L x 2-1/4 inches W x 7/8 inches D
• LK-M06L Lock Dimensions: 9.84 inches L x 1.86 inches H x 1.05 inches D
• LK-M12L Lock Dimensions: 10.47 inches L x 2.87 inches H x 1.57 inches D
• Power Supply Specifications: 1.2amp at 12VDC
• Estimated Battery Backup Life (PS1250) with single maglock system: 7 1/2 hours

Single Door Kit Includes

• 1 each CC-3800EM Weather Proof, Indoor/Outdoor, Digital keypad + proximity reader
• 5 each PCS-1 proximity cards
• 1 each magnetic lock (select below)
• 1 each PS520W Request to exit motion detector
• 1 each TS-2 Request to exit pushbutton
• 1 each HUB-2SA under desk mount remote release button
• 1 each MC-1 12VDC 1.2 amp power supply and metal enclosure
• 1 each SLA1055 12VDC backup battery (included with MC-1 power supply)

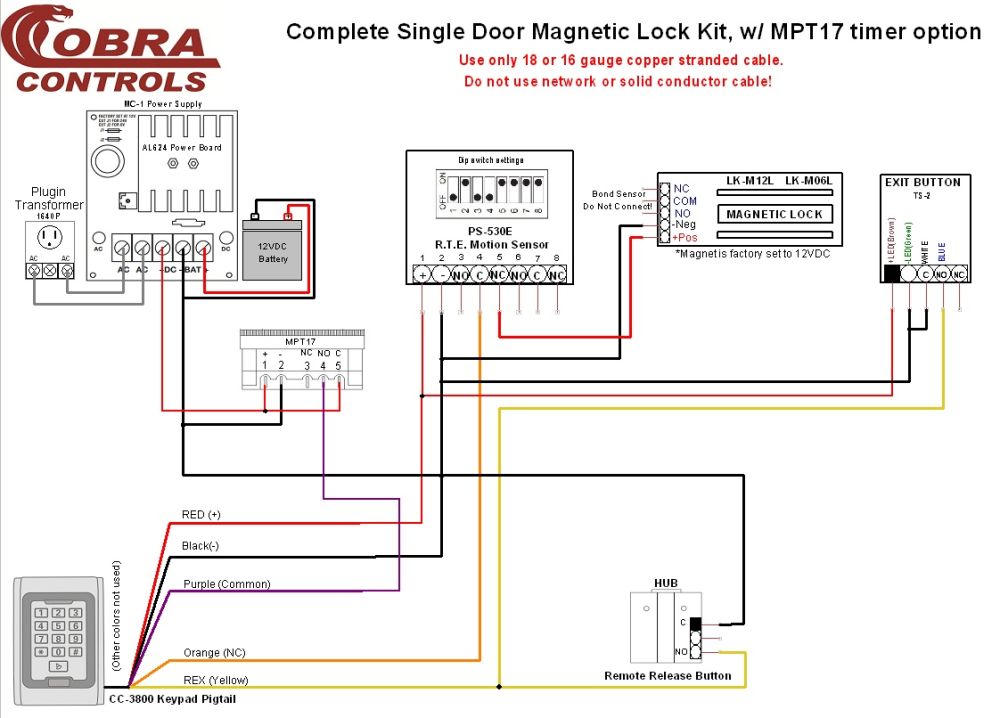

• 1 each Complete wiring diagram and 100% free over the phone tech support!!

For assistance with this kit please use the Live Chat feature or Call us Toll Free at 1-866-500-5625
