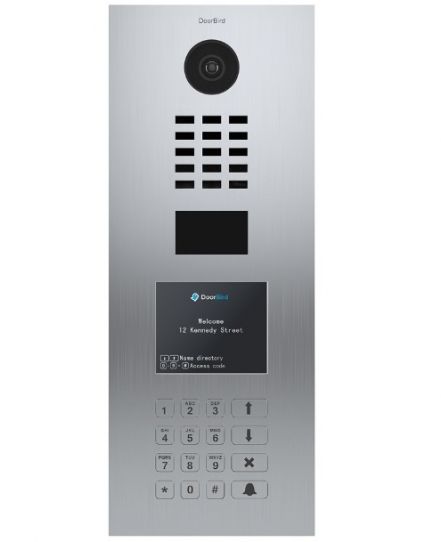

Doorbird D21DKV Multi-Tenant IP Video Door Station

Product Overview

The DoorBird D21DKV is a multi tenant IP Video Intercom system designed for use in apartment buildings and multi dwelling units. Installed at a front entrance or gate, visitors will be able to use the name directory to find and call residents. Residents will use the free DoorBird iOs or Android apps so they can see who's at the entrance, listen-in and have a two way voice conversation. When connected to an electric strike or gate operator, the gate or door can be opened remotely by the resident. DoorBird features high quality 720p video and full duplex two way audio. The system provides full colour video during the day. At night, it will automatically switch to night mode that allows it to see in pitch black with its built in infrared LEDs. The built-in RFID reader can be used with DoorBird cards or tokens to allow residents to automatically open a door or gate when they present their credentials.

The D21DKV can also be used with SIP systems, has an open API and can integrate with Control4, Crestron, RTI, URC and many more

Product Features

DoorBird D21DKV Multi-Tenant IP Video Door Station, Vertical Features:

• Multi-tenant IP Video Intercom (100 tenants max)
• Brushed stainless steel, 3 mm front panel
• 3 1/2 inch LCD illuminated display module with user directory
• Illuminated configurable Keypad Module with 16 keys
• High-end ultra wide-angle hemispheric lens, straightened, IR-capable
• Night vision light sensor, automatic IR-cut filter, 12 IR-LEDs (850nm)
• 4D motion sensor technology
• Two on board relays rated up to 24V 1A
• External input
• Built-in RFID reader (RFID cards/fobs sold separately)
• Free iOs and Android apps
• Two-way full duplex audio streaming
• Bank-level encryption
• Ethernet RJ45 network connection
• May be powered by 15VDC or PoE (power supply not included)
• IP65 weather approved
• CE, IC, FCC, RoHS compliant
• Temperature range: -25 to 55 C (-13 to 131 F)
• 2 year manufacturer's warranty

Note: The DoorBird unit requires 'always on' high speed internet

Technical Features

• Open API – Local interface for the integration with third-party systems and SIP
• Video and audio call – On smartphones and tablets (iOS, Android) or landline phones (SIP)
• Smart Home & ONVIF compatible – Control4, Loxone, Crestron, Synology, QNAP, AVM FRITZ!fon, URC, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Individual time and action plans, e.g. – RFID card „abc“ has only admission on Wednesday from 9 am until 11 am, 4D motion sensor switches on external lamp between 9 pm and 6 am
• Automatic door opener – For use in medical offices and office environments
• Night Vision – with 12 IR LEDs
• HDTV Video – ultra-wide-angle, hemispheric lens, 180°
• Free cloud recording – can be optionally activated for visitor history
• Light sensor – for night vision mode
• Echo and noise suppression(AEC,ANR)
• Geofencing – Automatic door and gate opening when returning home
• Display Module – Distance Sensitivity On/Off, Individually configurable, e.g.: Display of the resident directory, Various status displays
• RFID card reader – Configurable remotely via App
• Receive packages at any time – Direct the parcel carrier e.g. to the neighbor or open the garage door via smartphone
• Elegant and discreet design – no visible screws on the front panel, Plain and high-quality surface
• Keypad Module – Configurable via App, Individual PIN Codes, Individual events (e.g.: a relay switch, push notification, …)
• Burglary prevention – Prevents more break-ins than an alarm system
• Easy connection to the network – Connection via RJ45 socket or bell wire via 2-wire transformer (PoE, network data)
• Two freely configurable bi-stable switching relays, Two doors or gates can be controlled via App, Status configurable via App: Temporary or permanent circuit
