DynaLock 2022 Double Electromagnetic Lock 1200lbs
$830.40
$1,038.00
Overview

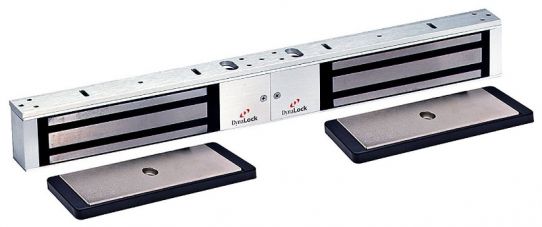

The 2000 Series is a full size double 1200 lbs. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. Specifically for commercial, industrial, or institutional openings when low cost and high security are required.
Includes armature plate and installation hardware.
Usage/Features
•Exterior doors
•Main Entranceways
•Medium to High Security Applications
•12/24 VDC/VAC
• Lifetime Warranty
Product Details
Product Overview
The 2000 Series is a full size double 1200 lbs. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. Specify for commercial, industrial, or institutional openings when low cost and high security are required.
Standard Features
- 1200lbs of Holding Force per leaf
- Armature Plate and install hardware included
- Silent Operation
- Long Lasting Performance
- 12/24 VAC/VDC operation
- Narrow backset of 1-1/2 inches
- Built-in spike suppression
- Made in the USA
- Lifetime Warranty
Technical Specifications
- Magnet Size: 22 inches L x 2-3/4 inches H x 1-1/2 inches D
- Armature Size: 7-3/8 inches L x 2-3/8 inches H x 1/2 inches D each
- Current Draw: 420mA @ 12VDC, 210mA @ 24VDC Each Coil
- Weight: 18lbs
Models
- 2022, 2022-US28 - Double Electromagnetic Lock Outswing
- 2022TJ22, 2022TJ22-US28 - Double Electromagnetic Lock Inswing
Finishes
- US28 Satin Aluminum with clear anodize
