Fingerprint (1-door) Door Magnetic Locking Kit
Processing...

Fingerprint (1-door) Door Magnetic Locking Kit

$746.98

Overview

Biometric Complete single door access control system with magnetic lock (600lb or 1200lb) and Fingerprint/Prox reader. (Fingerprint functionality will not work below -4F)

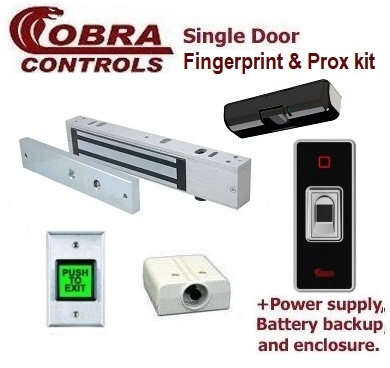

Kit Includes:

  • 1 each FPR-200W Fingerprint + proximity reader
  • 5 each PCS-1 proximity cards
  • 1 each magnetic lock (select below)
  • 1 each PS520W Request to exit motion detector
  • 1 each TS-2 Request to exit pushbutton
  • 1 each HUB2SA under desk mount remote release button
  • 1 each MC-1 Maglocks.com power supply – 12VDC 1.2 amp power supply and metal enclosure
  • 1 each SLA1055 12VDC backup battery (included with MC-1 power supply)
  • 1 each Complete wiring diagram and 100% free over the phone tech support!!

For assistance with this kit please use the Live Chat feature or Call us Toll Free at 1-866-500-5625

(Fingerprint functionality will not work below -4F)

More Info +


Select locking hardware:
Wire (select a length):
Options

Qty

Product Details

Product Overview

Fingerprint Door Locking System

  • Single door access control system inlcudes a magnetic lock (600lbs or 1200lbs)
  • Fingerprint/Prox reader for entry
  • Request to Exit devices and Power Supply with battery backup.
  • The remote release button can be wired to allow door release from almost anywhere in the building.
  • Power supply with battery backup ensures your door remains secure and all system components remain operational in the event of a power failure.
  • Fingerprint reader is programmed via the included wireless remote. No software, No computer Required!

Features

  • Finger print or Prox card entry
  • 200 Finger print / 500 Card user capacity
  • All programming is done with the included IR remote
  • Metal vandel resistant construction, includes security screws and built in anti-tamper alarm
  • (5) PCS-1 Prox cards included with kit purchase

Specifications

  • FPR-200W Dimensions: 4-5/16 inches L x 1-3/4 inches W x 13/16 inches D
  • FPR-200W Operating Temp: -4 F to 122 F
  • CM600CD Lock Dimensions: 9.84 inches L x 1.85 inches H x 0.98 inches D
  • LK-M12L Lock Dimensions: 10.47 inches L x 2.87 inches H x 1.57 inches D
  • Power Supply Specifications: 1.2amp at 12VDC
  • Estimated Battery Backup Life (SLA1055) with single maglock system: 7 1/2 hours

Fingerprint Kit Includes

  • 1 each FPR-200W Fingerprint + proximity reader
  • 5 each PCS-1 proximity cards
  • 1 each magnetic lock
  • 1 each PS520W Request to exit motion detector
  • 1 each TS-2 Request to exit pushbutton
  • 1 each HUB2SA under desk mount remote release button
  • 1 each MC-1 Maglocks.com power supply – 12VDC 1.2 amp power supply and metal enclosure
  • 1 each SLA1055 12VDC backup battery (included with MC-1 power supply)
  • 1 each Complete wiring diagram and 100% free over the phone tech support!

For assistance with this kit please use the Live Chat feature or Call us Toll Free at 1-866-500-5625

Also Known As
Fingerprint locking kit for single door, Biometric locking kit for single door
Manufacturer
Maglocks.com
Manufacturer Warranty
2 Year
Model Number
single door maglock kit FPR-200W
Power Requirements
12VDC
2 Questions asked on Fingerprint (1-door) Door Magnetic Locking Kit



Q Julius Dibello • 09/13/2019, 9:11:22 AM Can this reader be used on a glass Al Store front Door .Is it weather proof ?
A 10/09/2019, 1:09:43 PM Yes, at 1-3/4" Wide the FPR-200W can install directly on most hollow metal door jambs. Yes, the FPR-200W is weatherproof and can handle temperatures down to -4 F
Q Ron at Maglocks.com • 10/09/2019, 12:34:14 PM Popular Question: How is this reader programmed?
A 10/09/2019, 12:38:33 PM All programming is done via the included handheld remote control. This includes adding and removing Fingerprint & Proximity card users. No computer software required. *For computer controlled systems please give us a call at 1-866-500-5625
