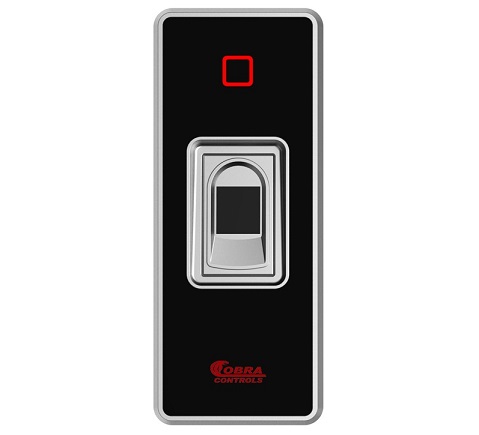

FPR-200W Weatherized Fingerprint Reader

$299.00

Overview

Cobra Controls FPR-200W Weatherized Fringerprint Proximity Card Reader. Programming is done using the included handheld IR programmer and program manual to add/remove users. No computer software required. Each unit also includes a mounting bracket and security screw for a tamper resistant installation.

Product Overview

Cobra Controls FPR-200W Weatherized Fringerprint Proximity Card Reader. Programming is done using the included handheld IR programmer and program manual to add and remove users. No computer software required. Each unit also includes a mounting bracket and security screw for a tamper resistant installation.

Product Features

Finger print and RFID EM card activation
Includes IR Remote and Programming Manual
200 Fingerprint Users
500 Prox Card Users
IP68 Rated for Outdoor Use
Wiegand 26-bit output
Built in SPDT Relay, (COM, NO, NC)
Standalone Programming, No Software Required
Compatible with most electronic locks

Technical Specifications

User Capacity: 200 fingerprints / 500 cards
Card type: EM4100 125 Khz, Cobra 26-bit
Reading distance: 3 inch maximum
Operating Temperature: -4 degrees F to +122 degrees F
Voltage: 12VDC
Idle draw: 20mA
Operating draw: 80mA
Interface: 26-bit Wiegand
Relay: SPDT, 3A maximum
Dimensions: 4-5/16 inches L x 1-3/4 inches W x 13/16 inches D (110mm x 45mm x 20mm)

Also Known As

FPR200W, F6-W, FPR-200W

Manufacturer

Cobra Controls

Manufacturer Warranty

2 Year

Model Number

FPR-200W

Power Requirements

12VDC

Usage

Weather Resistant

Datasheet PDF

User Manual PDF

1 Question asked on FPR-200W Weatherized Fingerprint Reader • Ask a Question

Q Chris Hepburn • 09/12/2023, 1:11:55 PM How do you force a user to login with both a card and a fingerprint?

A 09/14/2023, 8:23:24 AM The FPR-200w is a single authorization system does not support two factor authentication.
