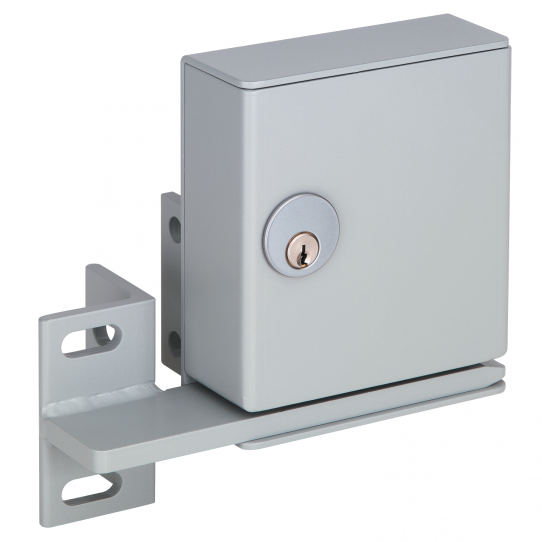

GL160 / GL260 SDC GateLok Electromechanical Gate Lock
Overview
The SDC GL160 and 260 series electromechanical GateLoks are designed to provide access control and remote locking and unlocking capability for manual or automatic chain link, tubular steel and wrought iron sliding or swinging gates.
Available in either failsafe (locked when energized) or failsecure (unlocked when energized) the electromechanical GateLok provides a higher degree of security than electromagnetic locks. Locking and unlocking may be accomplished with an access control such as a card reader, digital keypad or remote control.
All GateLoks are designed for a 3 inch (76mm) fence post and 2 inch (51mm) gate post and are adaptable to smaller sizes.
Product Features:
- Higher Security than Electromagnetic Locks
- Solid Stainless Steel 0.625 inch (15.9mm) diameter bolt
- Continuous duty operation
- Low current draw
- Auto relock switch
- Heavy gauge 0.125 inch (3.2mm)
- Weather sealed steel housing
- Access control compatible
Product Details
Product Overview
The SDC GL160 and 260 series electromechanical GateLoks are designed to provide access control and remote locking and unlocking capability for manual or automatic chain link, tubular steel and wrought iron sliding or swinging gates.
Available in either failsafe (locked when energized) or failsecure (unlocked when energized) the electromechanical GateLok provides a higher degree of security than electromagnetic locks. Locking and unlocking may be accomplished with an access control such as a card reader, digital keypad or remote control.
All GateLoks are designed for a 3 inch (76mm) fence post and 2 inch (51mm) gate post and are adaptable to smaller sizes.
Standard Features
- Higher Security than Electromagnetic Locks
- Solid Stainless Steel 0.625 inch (15.9mm) diameter locking bolt
- Continuous duty operation
- Low current draw
- Auto relock switch
- Heavy gauge 0.125 inch (3.2mm)
- Weather sealed steel housing
- Access control compatible
- Field Reversable Handing
Technical Specifications
- Size: 5 inch W x 6-1/2 inch H x 2 inch D (127 x 16.5 x 50.8mm)
- Material: 1/8 inch (3.2mm) SteelBolt 5/8 inch dia. x 5/8 inch throw (15.9mm x 15.9mm)
- Key Cylinder: ANSI 1-1/8 inch or 1-1/4 inch standard or interchangeable core mortise key cylinder. Provided by others.
- Failsafe: 12/24 VDC 900/450mA
- Failsecure: 12/24 VDC 900/450mA
Models
- GL160AI Failsafe, 12/24VDC
- GL163AI Failsafe, built-in keyswitch 12/24VDC * Mortise key cylinder sold separately
- GL260AH Failsecure 12/24VDC
- GL263AH Failsecure, built-in keyswitch, 12/24VDC * Mortise key cylinder sold separately
- GL260MRAH Failsecure, mechanical key release, 12/24VDC * Mortise key cylinder sold separately
Operation
The GL160A/GL260A GateLoks may be unlocked by an access control and remote control. The GL163A GateLok may be unlocked by an access control, remote control and built-in keyswitch. The GL263A GateLok may be unlocked by an access control, remote control and built-in mechanical key. The mechanical key is for momentary override and does not maintain a sustained unlocked mode. Standard with all GateLoks the adjustable Auto Relock Switch keeps the bolt retracted until the gate is in the closed position.
