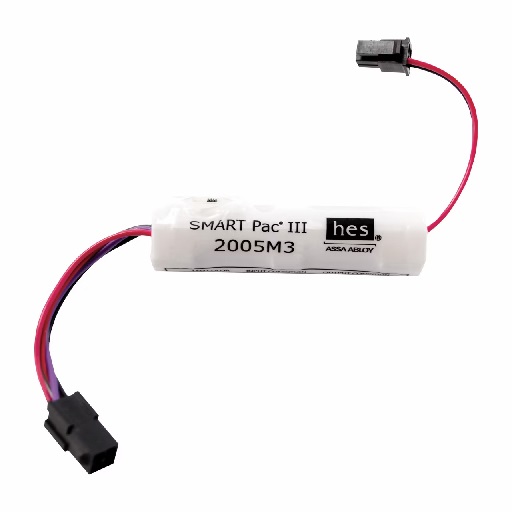

HES, 2005M3 Smart Pac III In-Line Power Controller

Product Features

The 2005M3 SMART Pac III is an in-line power controller that is able to receive input voltages from 12 to 32V and has a built-in bridge rectifier to convert AC to DC power. The continuous duty timer reduces initial voltage by 25% to extend the life of the electric strike. Includes built-in resettable fuse, MOV, voltage regulation and input status LED. The built-in poly switch and zener diode protect the host system from possible reverse current surges, while a reduced voltage ‘step down’ extends the life of the electric strike by reducing operating temperature. The SMART Pac III can provide a DC output with an input ranging from 10.5 to 33 VDC or 10.5 to 30 RMS AC. The SMART Pac III can also be used to troubleshoot installation problems. The SMART Pac III’s built-in LED can be used as a simplified voltage meter that indicates the power supply voltage at the installation. In addition, the SMART Pac III has a two-position Slide Switch that matches the SMART Pac III output voltage to the operating voltage of the electric strike.

Note: The input voltage must be in range of the voltage required by the electric strike.

Models

• 2005M3 - Smart Pac III In-line Power Controller

Features

• Direct plug & play with HES electric strikes
• LED Status Indicator
• Voltage Input Slide switch for 12 or 24 volts AC/DC

Technical Specifications:

• Country of Origin: United States
• Compatibility: Folger Adam - All Series HES Electric Strikes - All Series
• Application/Usage: Electric Strike
• Series: HES Parts and Accessories
• Product Type: Electric Strike In-line Power Control
• Product Line: SMART Pac III
