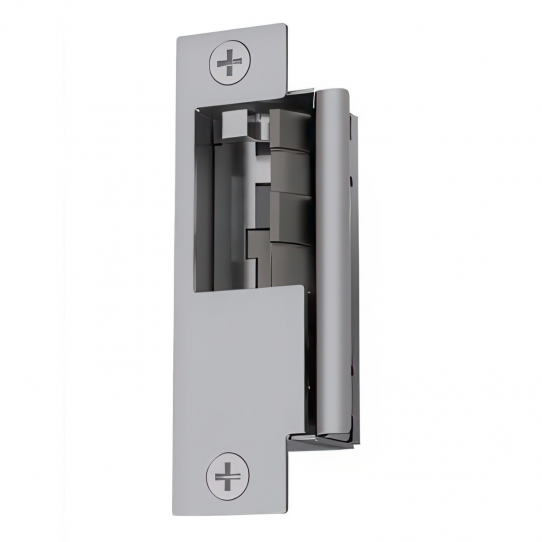

HES 8500 Strike, Mortise Locks, Stainless, Fire-Rate Gr 1
Overview
The concealed electric strike solution for mortise locksets
Introducing the HES 8500 series, the first concealed electric strike solution for mortise locksets. Designed for fast, convenient installation, the 8500 fits into low profile openings with no modification to the face of the frame.
Best of all, the creative design of the HES 8500 helps manage some of the unique challenges of a mortise lock installation. We invite you to take a moment to get to know the newest member of the HES concealed strike family.
This listing is for 630 Dull stainless finish if another finish is required please call to order.
Product Details
The concealed electric strike solution for mortise locksets
Introducing the HES 8500 series, the first concealed electric strike solution for mortise locksets. Designed for fast, convenient installation, the 8500 fits into low profile openings with no modification to the face of the frame. Best of all, the creative design of the HES 8500 helps manage some of the unique challenges of a mortise lock installation. We invite you to take a moment to get to know the newest member of the HES concealed strike family.
Specifications
- UL 10C-fire-rated, 3 hour (fail secure)
- CAN4-S104(ULC-S104) fire door conformant
- NFPA 80-07 Compliant
- UL 1034 burglary-resistant listed
- ANSI/BHMA A156.31, Grade 1
- NFPA -252 fire door conformant
- ASTM-E152 fire door conformant
- UBC-7-2-94, Uniform Building Code
- Patents Pending
Frame application
- Metal
- Wood
Electrical
- .24amps @ 12VDC
- .12amps @ 24VDC
- DC continuous duty/AC intermittent duty only
Standard Features
- No cutting of the face of the frame
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 500,000 cycles
- Field selectable fail safe / fail secure
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Metal or Wood Frame
- Internally mounted solenoid
- Accommodates 3/4 inch mortise latchbolts
- Strike body depth 1-5/16 inch
- Plug-in connector
- Full pocket shims for horizontal adjustment
- Five year limited warranty
Models
- 8500 630 - (Strike Body Only) Fail Safe/Fail Secure, 12/24VDC
- 851M 630 - Faceplate Option, 4-7/8" x 1-1/4", Use with Sargent 8100, 8200, 9200, Satin Stainless Steel
- 852K 630 - Faceplate Option, 4-7/8" x 1-1/4", Use with Corbin Russwin ML2000, Satin Stainless Steel
- 852L 630 - Faceplate Option, 4-7/8" x 1-1/4", Use with Schlage L9000, Satin Stainless Steel
- 852M 630 - Faceplate Option, 4-7/8" x 1-1/4", Use with Yale 8700, 8800, Accurate, Falcon, Kaba, Satin Stainless Steel
Optional Features
- LBM - Latchbolt Monitor
- LBSM - Latchbolt Strike Monitor
