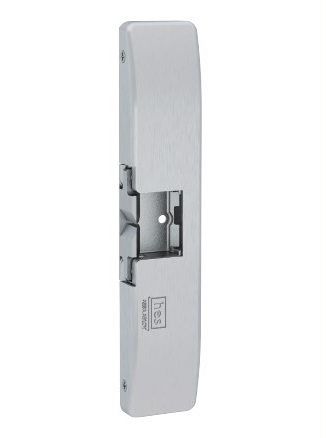

HES 9500 Genesis III Surface Strike Rim Exit Fire Rated
Overview
The 9500 Series is a 3 hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" Pullman latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation.
Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.
The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.
Product Details
Product Overview
The 9500 Series is a 3 hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4 inch Pullman latch. All components are completely encased within its 3/4 inch thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.
Specifications
- UL 10C fire-rated, 3 hour (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- WHI fire door listed
- UL 1034, burglary-resistant listed
- ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373)
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- California Fire Marshall listed
- NFPA 80-07 compliant
- UBC-7-2-94, Uniform Building Code
- Patent #6,390,520
Frame Application
- Metal
- Wood
Electrical
- .45amp @ 12VDC continuous duty
- .25amp @ 24VDC continuous duty
Standard Features
- Completely surface mounted
- Stainless steel construction
- Tamper resistant
- Static strength 1,500lbs
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail safe/fail secure
- Dual voltage 12 or 24 VDC
- Horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates up to 3/4 inch pullman latch
- Five year limited warranty
Options
- 9500LBM - Latchbolt monitor
- 9500LBSM - Latchbolt strike monitor
Certifications and Listings
- UL 10C fire-rated, 3 hour (fail secure)
- CAN4-S104 (ULC-S104) fire door conformant
- WHI fire door listed
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 Listed
- ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373)
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- California Fire Marshall listed
- NFPA 80-07 compliant
- RoHS compliant
