iMXDa Motion Exit Delay by Securitron, 1200lbs
Overview
iMXDa helps prevent peril to persons/patients and property loss theft for businesses. Applications include dementia wards, hospitals, dormitories, airports, child care facilities and retail or warehouse environments. Installation requires no alteration or replacement of existing fire-rated or non-fire-rated latching hardware. False triggering is eliminated by up to 1 inch of authorized door movement.
Delayed egress alarm begins automaticly when pressure is applied to the door.
Features:
- 1200lbs holding force Magnalock
- Compact 12-1/2 inch length can be used with most door closers
- 0 to 3 second nuisance alarm times
- 15 or 30 second delay times - user selectable
- External reset
- BondSTAT magnetic bond sensor and integrated door position switch standard
- Bright LEDs indicate unit status
- Automatic dual voltage - no field adjustment required
- Indoor use only
- UL Listed
Product Details

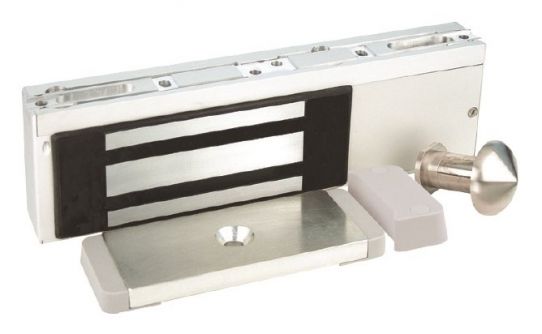

iMXDa Integrated Movement Delayed Egress Magnetic Lock
1200lbs magnetic lock
Product Overview
iMXDa Delayed Egress Maglockhelps prevent peril to persons/patients and property loss/theft for businesses. Applications include dementia wards, hospitals, dormitories, airports, child care facilities and retail or warehouse environments. Installation requires no alteration or replacement of existing fire-rated or non-fire-rated latching hardware. False triggering is eliminated by up to 1 inch of authorized door movement.
Specification Data
- Holding Force: 1200 lbs. [544 kg]
- Current Draw and Voltage: 370mA max at 12VDC; 270mA max at 24VDC
- Operating Temperature: +32 to +104F [0 to +40C]
- Shipping Weight: 15 lbs.
Product Features
- 1200 lbs. holding force Magnalock
- New shorter 12.5 inch overall length will fit most any door with a closer installed Now with automatic dual voltage - no field adjustment required
- New bracket-mounted design improves strength and installation time
- Microprocessor monitored BondSTAT magnetic bond sensor (MBS) and integrated door position switch (DPS) standard
- Reverse action plunger allows for adjustable alarm initiate gap from 1/8 inch [3.2mm] to 1 inch [25mm]
- Bright LEDs indicate unit status from the secure side of the door
- DIP switch selectable options:
- Nuisance alarm times - 0 to 3 seconds
- Irrevocable delay times - 15 or 30 seconds - user selectable
- External bypass delay times - 0, 5, 10 or 15 seconds
- Post alarm reminder - user selectable
- Bypass expiration alarm - user selectable
- Manual relock or delayed automatic relock (BOCA) - user selectable
- External alarm relay isolated dry contact (1A at 24VDC)
- External reset
- iEXD version allows alarm initiation via an external panic device
- Indoor use only
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Models
- iMXDa Integrated Motion Exit Delay System
- iMXDa-CA Integrated Motion Exit Delay System - California*
- iMXDa-CH Integrated Motion Exit Delay System - Chicago
- iMXDa-H iMXDa for HUGS Infant Protection System
Certifications and Listings
- UL294
- ULC-S533 2008
- UL/cUL FWAX.SA6635
- UL Certificate of Compliance (CoC)
- FWAX2.SA6635 /FWAX8.SA6635
- CSFM 3774-0923:0105
- CAN/ULC-S533 Listed
- ANSI/UL 294 Listed
- NFPA 101
- CSFM - California State Fire Marshal Approved (IMXDA-CA only)
