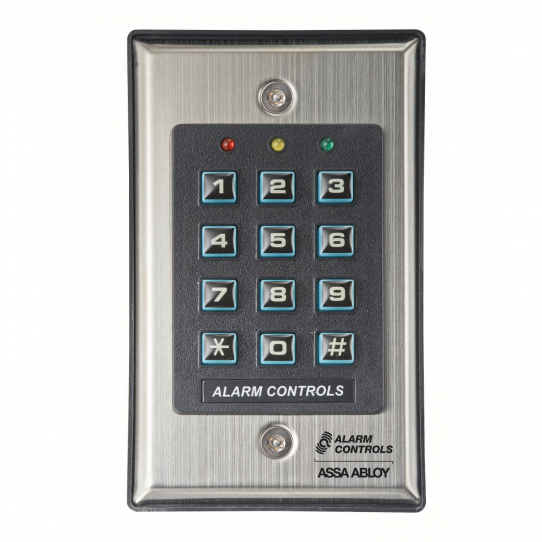

KP-100A Surface or Recess Mount Digital Keypad

KP-100A

The KP-100A is a self-contained digital access control keypad that can be flush mounted on a single gang box or surface mounted on its plastic mounting box.

Easy to install and easy to program, this keypad is ideal for access control and alarm arm/disarm control systems

It works perfectly in stand-alone operation, split-decoded operation for security enhancement with the optional decoder, and multi-station operation for user convenience.

Standard Features

• Single gang or flush mount stainless steel plate
• 12-key illuminated 3x4 keypad
• True 10-digit operation (10 digits plus * and # keys)
• 1 - 1,000 user codes capability
• 1 - 50 visitor codes for temporary workers and visitors
• Easy programming from the keypad
• Built-in tamper switch with N.C. dry contact
• Passage mode and Lockout mode
• Configurable audible keystroke echo tone
• Red, green and yellow LEDs for status and programming feedback
• Fail safe or fail secure capable
• Easy to install with simple hand tools
• 5A SPDT timed, control relay (1) output
• Request to exit (REX) input
• For indoor applications only
• 3 year warranty

Specifications

• Keypad: 2-3/4 inch W X 4-1/2 inch H X 5/32 inch D
• Surface mount back box: 2-13/16 inch W X 4-5/8 inch H X 1-7/16 inch D
• Operating Voltage 12-24V AC/DC [+/- 10%]
• Operating Current 12VDC: 40mA at rest; 100mA active 24VDC: 70mA at rest; 50mA active
• Output Relay – (1) Form C dry contacts 5A/30 VDC Max – Fail Safe or Fail Secure
• REX Input – N.O. dry contact 1mA/5VDC Max
• Tamper Switch – N.C. dry contact 50mA/24VDC Max
• Operating Temperature -4°F to +158°F [-20°C to +70°C]
• Humidity 5-95% relative humidity non-condensing
• Indoor use only
