Locknetics, RS310 Low Profile, Surface Mount, 3/4 Rim Strike
Overview
The RS310 Electric Strike is surface mounted and designed with the strength and durability for use with rim exit devices with a 3/4 inch throw Pullman latchbolt.
No cutting on the frame is required for installation.
Unit is field selectable for fail-safe and fail-secure operation, and for 12 or 24VDC.
The RS310 has a 3/4 inch (19.0mm) thick metal housing.
Product Details
Product Overview
The Locknetics RS310 is an electric strike designed for indoor applications and suitable for rain or dust environments. This surface mounted strike is designed to accommodate rim exit devices with a 3/4 inch throw pullman latch bolt and multiple spacers are included for easy installation. This electric strike features a dual voltage of 12/24 VDC and is field selectable for fail-safe and fail-secure (fail-secure default). It has a static strength of 1500 lb. static load, UL certified and a dynamic strength of 70 ft.-lb. dynamic load, UL certified. This electric strike also has a built-in voltage spike suppressor and is UL1034 listed for burglary-resistant electric locking mechanisms. The RS310 is available in a Satin Stainless Steel (US32D) finish or a Oil Rubbed Bronze (US10B) finish, suitable for rain or dust environments, and is UL certified with 250000 cycles endurance.

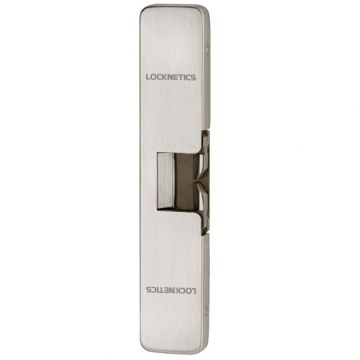

The RS210 and RS310 replaced the the RS200 and RS300 effective Q2, 2023. The new products deliver the same functionality with a stiffer cover for enhanced performance and concealed mounting holes for cleaner surface aesthetics. The RS Series of surface mounted electric rim strikes are designed with endurance and flexibility. Models are available to accommodate rim exit devices with a 1/2 inch (RS210) or 3/4 inch (RS310) throw pullman latch bolt with multiple spacers included for superior installation.
Features
- Field selectable 12/24 VDC
- Simple and easy field selectable fail-safe/fail-secure
- Non-handed
- Multiple spacers included for easy installation
Model
- RS310-32D - Satin Stainless Steel finish
- RS310-10B - Oil Rubbed Bronze finish
Specification
- UL1034 Burglary-resistant electric locking mechanisms, listed
- UL294 (indoor), listed
- Static strength of 1500 lb. static load, UL certified
- Dynamic strength of 70 ft.-lb. dynamic load, UL certified
- 250,000 cycles endurance, UL certified
- Dual-voltage 12 VDC @ .54A / 24 VDC @ .27A
Dimensions
- 9 inches L x 1-3/4 inches W x 3/4 inches D (229mm x 44.5mm x 19mm)
Product Update
- The Locknetics RS210 and RS310 have replaced the RS200 and RS300 effective April, 2023
Options
- (none)
