20% Off MSRP

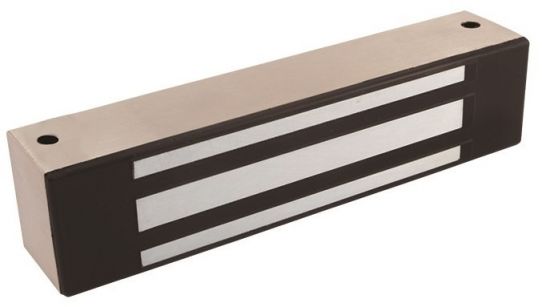

M32 Series Magnalock by Securitron, 600lbs
$353.60
$442.00
Overview
600 lbs. holding force Magnalock with automatic dual voltage. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.
Features:
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with a minimum of tools
- Fully sealed electronics - tamper proof and weatherproof
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Ten feet [3.05m] of jacketed, stranded conductor
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
- UL Listed
*The M32 with strike requires minimum 2.25 inch of flat mounting space
Product Details
M32 Series Magnalock by Securitron, 600lbs holding force
Product Overview
600 lbs. holding force Magnalock with automatic dual voltage. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.
Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with a minimum of tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Dress Covers available
- Ten feet [3.05m] of jacketed, stranded conductor
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
- UL Listed, UL 294
Specification Data
- Magnet size: 8 inch L x 1.5 inch W x 1.88 inch H
- Armature size: 6.25 inch L x 0.5 inch W x 1.63 inch H
- Current Draw and Voltage: 300mA at 12VDC; 150mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
Models
- M32 (Magnalock Model M32)
- M32F (M32, Face Mount)
- M32FB (M32, Face Mount, Mag Bond Sensor)
- M32FBD (M32, Face Mount, Mag Bond Sensor, Door Position Switch)
- M32FD (M32, Face Mount, Door Position Switch)
- M32B (M32, Mag Bond Sensor)
- M32BD (M32, Mag Bond Sensor, Door Position Switch)
- M32D (M32, Door Position Switch)
Warranty
Also Known As
SEC100M32, SN-M32, HES-M32Finish
Stainless SteelManufacturer
SecuritronManufacturer Warranty
LifetimeModel Number
M32Power Requirements
24VDC/12VDCStatus Monitor
OptionalUPC Code
784607021599
1 Question asked on M32 Series Magnalock by Securitron, 600lbs •
Q
Dave • 02/29/2020, 5:15:36 PM
I purchased a SECURITRON M32F MAGNALOCK 32 - 600 LBS HOLDING FORCE for my driveway duel swing gates approximately a year ago.
Recently, the magnetic lock has failed To stay together in strong winds. Is this a maintenance issue or a faulty product?
Thank you.
A
03/02/2020, 12:24:27 PM
There could be a few things going on with that lock. (Armature Alignment, Power Supply, Damage, etc) or simply an Insufficiently Sized lock for the application. To better assist with this issue please give us a call so we can pull up your original order and troubleshoot. You can reach us at 1-866-500-5625
