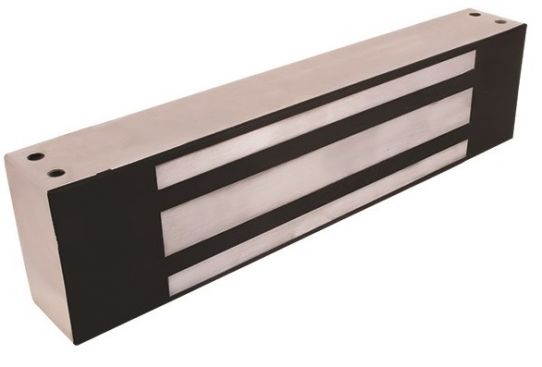

M82B Series Magnalock by Securitron, 1800lbs
$632.80
$791.00
Overview
1800 lbs. holding force Magnalock with automatic dual voltage and magnetic bond sensing function standard. Preferred by prisons and detention facilities, and also functions best on large, high security gates.
Features:
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with a minimum of tools
- Fully sealed electronics - tamper proof and weatherproof
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- BondSTAT magnetic bond sensor sensor standard
- Intergrated door position switch, conduit and face mount models available
- UL Listed
*The M82 with strike requires minimum 2.5 inches of flat mounting space
Product Details
M82B Series Magnalock by Securitron, 1800lbs holding force
Product Overview
1800 lbs. holding force Magnalock with automatic dual voltage and magnetic bond sensing function standard. Preferred by prisons and detention facilities, and also functions best on large, high security gates.
Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with a minimum of tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Dress Covers available
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- BondSTAT magnetic bond sensor standard
- Intergrated door position switch, conduit and face mount models available
- Universal threaded conduit fitting is 1/2" female - 3/4" male
- UL Listed
Specification Data
- Holding Force: 1800lbs. [816 kg]
- Magnet size: 12 inches L x 1.75 inches W x 3 inches H
- Armature size: 9 inches L x 0.5 inches W x 2.75 inches H
- Current Draw and Voltage: 350mA at 12VDC; 200mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 16 lbs.
Models
- M82B - (Magnalock Model M82, Mag Bond Sensor) *Replaces M82SC<
- M82BD - (M82, Mag Bond Sensor, Door Position Switch)
- M82B-OS - (M82, Mag Bond Sensor, Offset Strike) *Replaces M82SC-OS
- M82B-SS - (M82, Mag Bond Sensor, Split Strike) *Replaces M82SC-SS
- M82FB - (M82, Face Mount, Mag Bond Sensor) *Replaces M82SCF
- M82FBD - (M82, Face Mount, Mag Bond Sensor, Door Position Switch)
- M82FGB - (M82, Face Mount, Conduit, Mag Bond Sensor) *Replaces M82SCFG
- M82FGBD - (M82, Face Mount, Conduit, Mag Bond Sensor, Door Position Switch)
- M82GB - (M82, Conduit, Mag Bond Sensor) *Replaces M82SCG
- M82GBD - (M82, Conduit, Mag Bond Sensor, Door Position Switch)
- M82GB-OS - (M82, Conduit, Mag Bond Sensor, Offset Strike) *Replaces M82SCG-OS
- M82GB-SS - (M82, Conduit, Mag Bond Sensor, Split Strike) *Replaces M82SCG-SS
Warranty
Also Known As
SEC100M82B, N-M82, HES-M82Finish
Stainless SteelManufacturer
SecuritronManufacturer Warranty
LifetimeModel Number
M82Power Requirements
24VDC/12VDCStatus Monitor
StandardUPC Code
784607035510
1 Question asked on M82B Series Magnalock by Securitron, 1800lbs •
Q
Elwood R. Webster • 01/09/2020, 2:47:32 PM
Are there dip switches to change bondstat and DPS switches from normally closed to normally open.
A
01/09/2020, 4:28:27 PM
No. There is no need to change this as both the Bondstat and DPS switches are (SPDT/Form C). This means you will have a COM, NO & NC for each switch allowing you to wire it as Normally Closed or Normally Open (your choice).
For more information on these switches please reference Page 14 on the M82 Installation sheet: https://www.maglocks.com/mm5/graphics/00000002/M82_Installs.pdf
