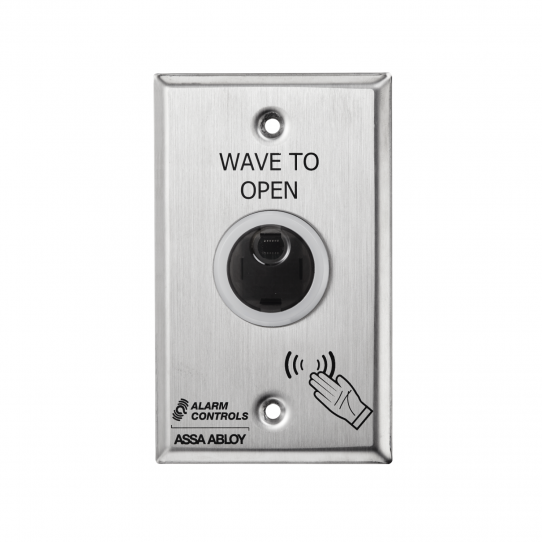

NTB Series Battery Operated No Touch Request to Exit Station
Overview
The battery powered NTB No Touch Request to Exit Station uses infrared sensors to reliably allow safe egress or to activate a device with a simple hand presentation. These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.
Product Details
The battery powered NTB No Touch Request to Exit Station uses infrared sensors to reliably allow safe egress or to activate a device with a simple hand presentation.
These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.
- Quickly upgrade existing applications to code compliant touchless using existing wiring
- Designed to work in product configurations with and without auto operator (Can include electric strike, electrified deadlatch, exit devices with latch retraction, magnetic locks. *)
- Direct replacement for traditional “request to exit” push buttons
* Always comfirm compliance with your local building codes.
Standard Features:
- Battery or DC powered (optional)
- Low battery LED status indicator
- Wired communication
- Stainless steel with vandal resistant face plate
- Sensor detection range up to 4 inches for applications that require precise activation
- Built in obstruction detection
- Field-configurable bi-color (red/green) LED status indicators
- Selectable time delay 1 to 10 seconds
- Field-configurable on/off audible tones configurable via jumper
- Plate screened "Wave To Open"
- For use with swinging and sliding door applications
Models:
- NTB-1 with single gang wall plate
- NTB-1A with single gang with ADA symbol
- NTB-2 with double gang wall plate
- NTB-2A with double gang with ADA symbol
- NTB-3 with narrow stile wall plate
- NTB-3A with narrow stile with ADA symbol
* Available in stainless steel (standard), black (BK), and Duranodic Dark Bronze (DURO) finishes
Certifications & Listings:
- CE Certified
- UL294 Listed
- RoHS Certified
Electrical:
- DPDT relay rated 2A at 30 VDC/VAC
- 2 AA alkaline batteries (included)
- Optional 12 or 24 VDC hard-powered
Operating Temperature:
- -13 to + 131 F (-25 to 55 C)
