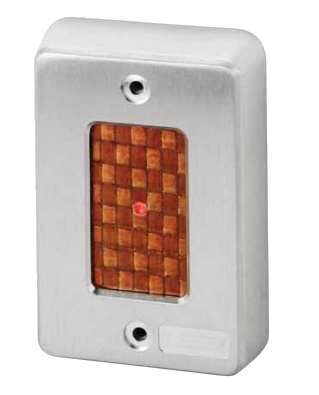

P-455-HA Gibralter Bullet Resistant Prox Reader, Single Gang

Product Overview

Gibraltar vandal-resistant readers are designed to thrive in the most demanding access control applications.

For superior durability, Gibraltar readers combine the power of Farpointe’s Pyramid Series Proximity® 125-kHz proximity technology with a virtually indestructible exterior. Each Gibraltar reader is milled from a solid block of stainless steel and reinforced with a bullet-resistant Shot Blocker™ insert. Additionally, the reader ships standard with tamperproof screws.

Installation examples may include schools, correctional facilities, housing authorities, and sites where heavy equipment is operated

Standard Features

• Single Gang mount
• 26-bit Wiegand data output
• Built-in transceiver antenna, 125KHZ
• Built-in Bi-color LED and buzzer
• Waterproof (IP67)
• Limited lifetime warranty

Technical Specifications

• Compatible with HID® (H10301) 26-bit format (H10301) cards and tags
• Compatible with AWID cards and tags
• Compatible with Farpointe Pyramid series cards and tags
• Frequency: 125 kHz
• Read Range: Up to 1 inch (25mm)
• 30 mA typical, 75 mA peak @ 12VDC
• Operating Temperature: -40deg F to 149deg F
• Dimensions: 3 inches W × 4.5 inches H × 1 inch D (76 mm × 114 mm × 25 mm)

Model

P-455, P455, P-455-H, P455H, P455HA, P-455-HA

Finishes

Stainless Steel

HID®

HID® is a Registered Trademark of HID Global Corporation
