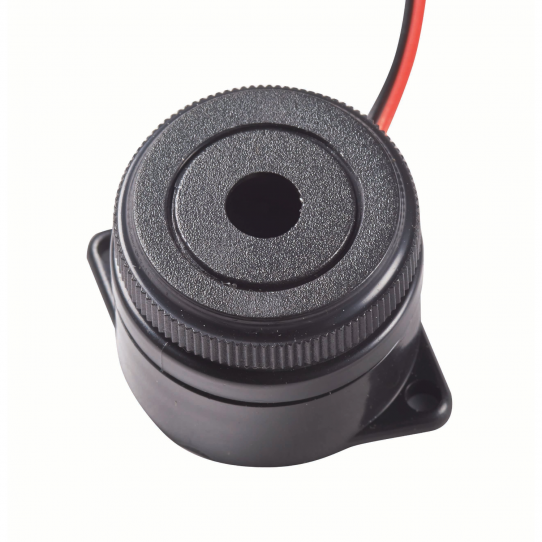

PA-100 Piezo Alert Buzzer, 85db at 3ft

$22.95 ~~$27.00~~

Overview

PA-100 Piezo Alert Buzzer, 85db at 3 feet. Small compact design, compatible with access control equipment to signal door release. Easy 2 wire connection.

Product Details

Product Specifications
Additional Info
Documentation
Questions & Answers

Specifications

Piezo buzzer mounts in .750 inches diameter hole
Sound Level 85db at 3 feet
Resonant Frequency : 3.7 +0.5kHz
Operating voltage range 6 to 28 volts DC
Current draw: 1.5ma @ 6VDC OR 4.5ma @12VDC OR 12.5ma @ 28VDC
6 inch red and black leads

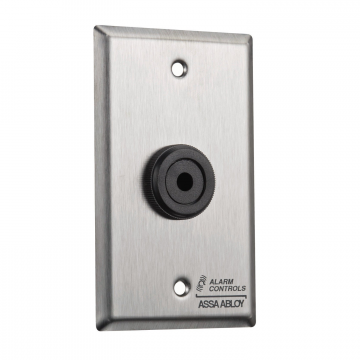

Model RP-23 single gang wallplate is used for mounting

Model

PA-100, PA100

Also Known As

PA-100, PA100, ALA300PA100

Finish

Black

Manufacturer

Alarm Controls

Model Number

PA-100

Power Requirements

24VDC/12VDC

Status Monitor

n/a

UPC Code

714131718009

Datasheet PDF

1 Question asked on PA-100 Piezo Alert Buzzer, 85db at 3ft • Ask a Question

Q toshihito hishiki • 10/07/2022, 4:24:10 PM what is the resonant frequency of PA-100?

A 10/11/2022, 2:43:14 PM PA-100 Resonant Frequency : 3.7 +0.5kHz
