Rosslare Security, AC-825IP 4 Door Access Control Panel

$1,741.84 ~~$2,177.30~~

Overview

The AC-825IP is a 4 door networked access controller suitable for a medium-scale to high-scale access control projects. The controller comes with one onboard expansion slot and can be further expanded by connecting up to 12 expansion boards via OSDP. Using D-805 door expansion boards, a single AC-825IP can handle up to 58 doors and 100,000 users.

Driven by AxTraxNG™ – Rosslare’s powerful and flexible software – the system provides a modular and expandable solution for commercial and institutional needs.

To get started on a FREE System Quote, please give us a call at 1-866-500-5625 or fill our this short online form here

Product Description

The AC-825IP is a state-of-the-art 4-door networked access controller and is the backbone of a medium-scale to high-scale security system. The controller comes with one onboard expansion slot. Using only D-805 door expansion boards, a single AC-825IP can handle up to 58 doors and 60,000 users. Driven by AxTraxNG™ – Rosslare’s powerful, flexible, and easy-to-use software – the system provides an ideal modular and expandable solution for commercial and institutional needs.

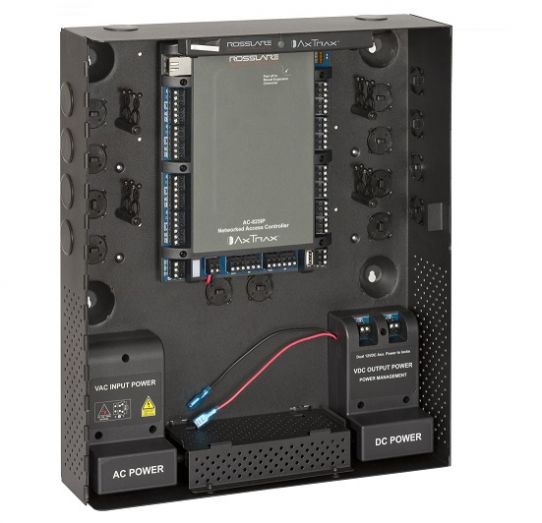

The AC-825IP access control unit (ACU) supports up to 4 doors (In/Out) via Wiegand protocol, each with 2 inputs and 1 output. Four additional auxiliary inputs and 2 auxiliary outputs are also on board. The AC-825IP includes an encrypted communication via TCP/IP to an AxTraxNG server, and has an additional RS-485 bus for expansion connectivity. In addition, the AC-825IP and its expansions can be placed in a lockable metal enclosure, the ME-1515, which includes a control board, power switcher, built-in power management board/charger, sounder, and a revolutionary enclosure illumination bar that lights up when the enclosure is opened.

Access Controller Features

Up to 58 doors, 60,000 users, and 500,000 history log entries (FIFO) per ACU
Onboard TCP/IP networking with AES 128-bit data encryption to an AxTraxNG server, bi-directional push communication for enhanced data transmission speed and reliability
Supports up to 4 doors (In/Out), each with 2 inputs and 1 output
4 auxiliary inputs and 2 auxiliary outputs
2 RS-485 buses (OSDP and G-Bus)
One onboard expansion slot and an additional 12 expansion boards via OSDP (R/S/D/P-805). Call us for expansion board pricing and availability

R-805 – 16 outputs
S-805 – 16 inputs
D-805 – 4-door expansion
P-805 – 16 inputs and 8 outputs

An additional ME-1515 metal enclosure holds up to 2 expansion boards and includes all the innovative features of the AC-825IP enclosure
SD card slot with 8GB card included
Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)
Spacious and lockable metal enclosure, features cable twist locks and zip-tie anchors for better cable management
Power management board indicates battery and power status
Revolutionary enclosure with: illumination bar that lights up when enclosure is opened; tamper sensing; and power status LED

System Software Features

AxTraxNG™ Ultralight networked access control management software. Rosslare’s AxTraxNG™ Ultralight is a Server-Client software management system enabling management of modular networked access control panels. The AxTraxNG™ Ultralight management software is user-friendly, intuitive, reliable, and rich in functionality.

Password controlled for high level of security
Compatible with Rosslare’s Networked Access Controllers
Advanced Access Group assignment
Complete Access Monitoring capability
User-friendly software with intuitive GUI help reduce the complexity of installation
Manages user data, photo and information fields, access rights, alarms, strike time, and door mode, all from one central location
Car parking management
Card database automation for automatic deletion of unused cards
Produces attendance reports from acquired data
Available in multiple languages
E-mail Notifications: Door Propped, Valid User Swipe, Invalid User Swipe

System Requirements for the AxTraxNG™ software

Supported OS: Windows 7 SP1, 8.1 or 10, 32 or 64 bit **Note: Windows XP not supported **
Recommended System Requirements: Intel Core I5 dual core 2.5 GHz or equivalent RAM 8GB, 5GB free space

AxTraxNG™ Software License

Software license is free up to 256 readers(contact Maglocks.com for more information on license for large installations)

Product Specifications

ACU Power Supply Voltage: 12 VDC from built-in regulated power management modeule
ACU Power Supply Max Current: 4-Amps
Relays: 6 Form-C relays on boards, 4-doors and 2-Aux. expandable with the above listed boards
Battery: 12 volt sealed lead acid (SLA) up to 7 Ah
Maximum Current for Readers: 1.1-Amps
Capacity: 60,000 users
History Event Log Size: 500,000 events
Inputs: 12 supervised (4-doors REX input with 4 door monitors and 4 Aux inputs)
Readers: Four Weigand reader ports with tamper and LED control. Two additional readers connected via OSDP. Includes an expansion socket compatable with any of the four above listed exansion boards (R/S/D/P-805 boards)
Connectivity: Onboard TCP-I/P OSDP/RSDP-bus, USB expansion-bus for R/S/D/P-805 boards. Call us for expansion board pricing and availability
OSDP: Supported
Encryption: 128-bit encrypted standard
Communication with AxTraxNG™ Server: Bi-directional
Time Zones and Groups: 256 multi-segment time zones, 64 holidays - each holiday can be of multiple days, practically unlimited access groups
Special Features: Interlock, first person delay, auto-relock, scheduled output operation, 4 programmable site codes, extended unlock time parking lot management, fully interconnectedness
Firware Upgrade: Local/remore, through AxTraxNG PC software
Product Warranty: 2-Year Limited Product Warranty
