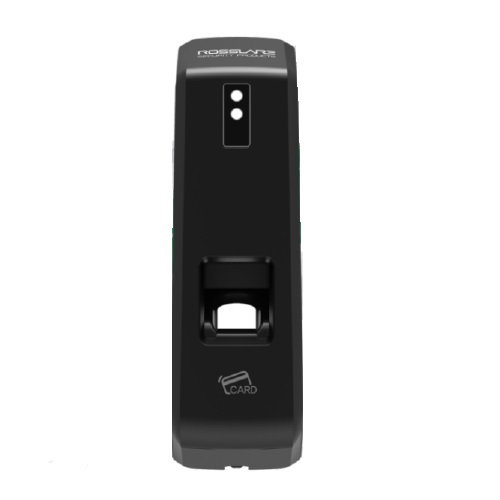

Rosslare Security, AY-B9120BT Professional Fingerprint & Prox Card Reader, Networked
$914.65
$1,143.31
Overview
The AY-B9120BT networked fingerprint reader has a built-in EM (125 kHz ASK) RFID card reader with a capacity for 20,000 fingerprint credential templates with liveness check and high-speed operation.
Product Details
General Description
This professional-grade fingerprint reader has a high-speed optical sensor with a capacity of 20,000 templates featuring powerful algorithms with liveness check and encrypted data storage.
AY-B9120BT has a built-in 125 kHz EM RFID card reader and features an integrated Rosslare BLE-ID™ reader. It has RS-485, TCP/IP, and Wiegand 26- or 34-Bit connectivity.

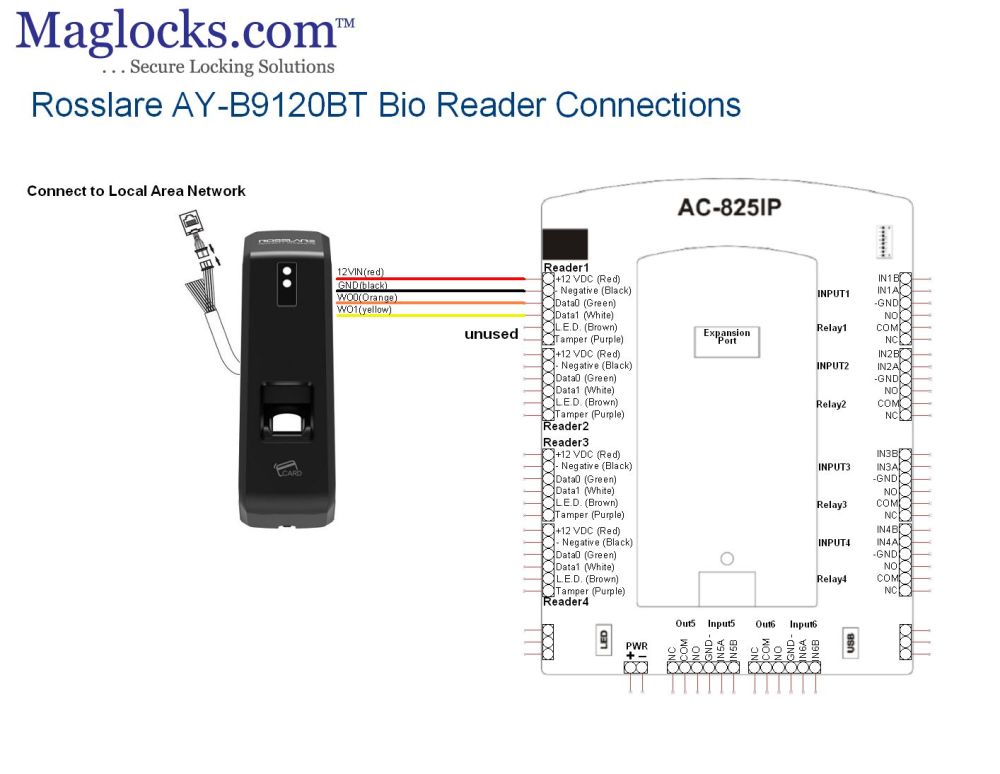

The terminal can be set up easily using the AxTraxNG Client software *requires AC-825IP Access Control panel (sold separately)
Main Features
- Supported by Rosslare AxTraxNG software
- Small compact design for indoor/outdoor use
- Built-in TCP/IP, RS-485, and Wiegand output connectivity
Specifications
- Voltage: 12VDC, 300mA max
- IP Rating: IP65 water-proof
- Operating Range: (-20°C to 60°C)
- Dimensions: 58 mm x 188 mm x 49.8 mm
- Max Users: 10,000 (2 prints per user, 20,000 templates)
Software Solutions
- AxTraxNG: Easy to install and operate using Rosslare AxTraxNG™ Server for Windows for managing user data and template distribution (many languages)
