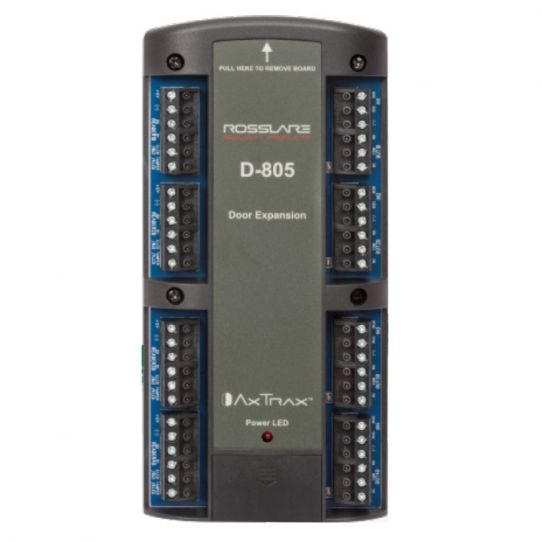

Rosslare Security, D-805 Expansion Board for the AC-825IP
Overview
The D-805 is a 4-door expansion board that can be used to add doors onto an existing system. This expansion board can be connected to an existing AC-825IP in one of two ways:
- pluged directed onto an AC-825IP head panel
- wire to an AC-825IP panel using RS485 wiring
*requires AC-825IP head panel (sold separately)
Driven by AxTraxNG™ – Rosslare’s powerful and flexible software – the system provides a modular and expandable solution for commercial and institutional needs.
To get started on a FREE System Quote, please give us a call at 1-866-500-5625 or fill our this short online form here
Product Details
Product Description
The D805 is a 4-door expansion board that can be used to
add doors onto an existing system.
This expansion board MUST be connected to an existing
AC-825IP in one of two ways:
- plug
directly onto an AC-825IP panel
- wire
to an AC-825IP panel using RS485 wiring
*requires AC-825IP head panel (sold separately)
Door Expansion Features
- 4 x
Wiegand Readers
- 4 x
Relay Outputs (Form C, 5A)
- 8 x
Supervised Inputs
Product Dimensions
- Dimensions: 7 inch L x 3.4 inch W x 1.1 inch H (178 x 87 x 30mm)
- Weight: 5.3 oz
Certifications
- UL 294
To get started on a FREE System Quote, please give us a call
at 1-866-500-5625 or fill our this short online form
here
Also Known As
D805For Use With
AC-825IP head panel (sold separately)Manufacturer
RosslareManufacturer Warranty
2 YearModel Number
D-805Power Requirements
12VDCUsage
Interior UseAxTraxNG™ Software (link below)
AxtraxNG Software Download & DocumentationAxTraxNG - Software design, set-up and use Video - 63 Minutes
AxTraxNG - AC-825IP Set-up and Wiring Video - 9 Minutes
