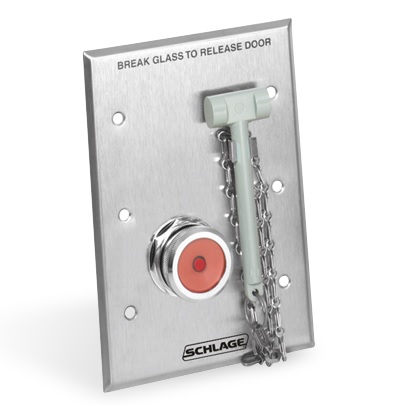

Schlage, 740 Series Emergency Break Glass Release
Overview
Schlage 740 Series emergency break glass releases are designed for use as emergency releases of non-designated egress doors such as in individual and partitioned laboratories, secluded testing areas or other isolated work rooms that are purposely provided with exit doors.
Schlage emergency break-glass release products allow normally locked doors to function when emergency egress is needed.
Product Details
Product Overview
Schlage 740 Series emergency break glass products are designed for use as an emergency release of doors not normally used for daily ingress/egress. These may include laboratories, testing areas or other similar work rooms. It is also used in fail safe, multiple door interlocks and perimeter protection systems that involve the central control and potential lockdown of electronic locking devices, as an on-site emergency release. A “break glass” solution may be preferred in many situations over a conventional "pull box" installation because it is less vulnerable to misuse or tamper actuation.
The 740 Series emergency break glass units consist of a replacement break glass cartridge that normally holds the plunger-activated switch depressed until the cartridge lens is broken. When the lens is broken, the plunger moves forward and alters the switch contact position.
Product Specifications and Key Features
Security
- Compatible with all fail-safe types of electronic locking systems
- An effective alternative to the conventional pull box types in reducing false alarms and tampering incidences
Application
- Mount to wall over a standard three-gang enclosure
- Use in laboratories and isolated areas where emergency release of a door not normally used for daily ingress/egress is needed.
- Emergency release options for door interlocks or buildings with perimeter doors on a centralized access control system (where permitted by code)
Design
- Stainless steel plate and fittings
- Options include LED and audible alert models to provide warning of emergency use or tampering
Models
- 740: Includes break glass switch assembly and hammer mounted to a silk-screened 3-gang stainless switch plate
- 741: With indicator light. Call us for Availability and lead time
- 742: Sonalert horn (80 dB @ 2 ft). Call us for Availability and lead time
Power requirements
- 6A @ 30 VDC Form Z switch
Finish
- Satin stainless steel
Key Features
- Surface mount in a standard 3-gang enclosure
- Compatible with all fail-safe type electronic locking systems
- An effective alternative to the standard pull box
- Stainless steel standard finish
- Clearly marked signage indicating purpose of the release
- Includes 4 replacement lens disks
