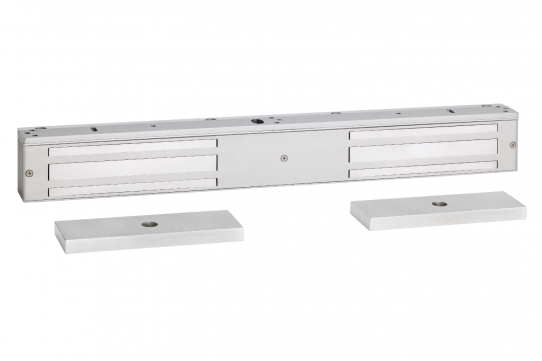

SDC 1512 Double EMLock, 1650lbs Grade 1 Magnetic Double Lock

$767.20 ~~$1,096.00~~

Overview

SDC 1500 series EMLocks® include a lifetime warranty and are available in 650lbs, 1200lbs, and 1650lbs holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks® are UL Listed and ANSI Grade 1 compliant.

Specify Finish (V - Aluminum Standard, all other special order 4-weeks):

Options

D - Door position sensor. Indicates door open and door closed. SPDT Dry, 250 mA @30VDC Double + $100.00

B - Magnetic bond sensor. Indicates locked with full holding power and unlocked, low holding power, low voltage, tampering and obstruction between armature and magnetic core. SPDT Dry, 250 mA @ 30VDC Double + $148.00

A - Anti-tamper switch. Detects attempt to remove the access cover. + $62.00

T - Adjustable timer. Built in field adj. 0-30 sec. relock delay. Double + $79.00

L - Bi-color status LED indicator. Field selectable Red and Green. (see options below for details) + $21.00

Qty

SDCs patented EMLock® design represents the pinnacle of magnetic lock evolution. The modular EMLock® assembly makes them easy to stock, install, upgrade and maintain.

EmLock EZ Upgrade Kits

Field upgradeable by distributors, installers and maintenance staff. No need to ever remove a lock from the frame to upgrade or exchange internal components.

Upgrade Modules Include:

Relock Delay Timer
Magnetic Bond Sensor
Door Status Sensors
Anti-Tamper Switch
Holding Force Upgrade
Energy Saver Upgrade

Model

1512V (standard) Double EmLock - 1,650 lbs, V - aluminum finish

Specifications

Input Voltage: Dual voltage Sensing 12/24 VDC
- 700mA @ 24VDC
- 1.34A @ 12VDC
Size: 22 inches L x 2-3/4 inches H x 1-9/16 inches D (558.8 x 69.9 x 39.7 mm)

Options

D - Door Position Sensor: Indicates door open and door closed. SPDT Dry, 250 mA @ 30VDC.
B - Magnetic Bond Sensor: Indicates locked and unlocked, low holding power, tampering and obstruction between armature and magnetic core. SPDT Dry, 250 mA @ 30VDC.
A - Anti-tamper Sensor: Indicates access cover removal. SPDT Dry, 1amp @ 30VDC.
T - Adjustable Timer: Built-in field adj. 0-30 sec. re-lock delay.
L - Bi-color Status LED Indicator: Field selectable Red, Green, or Amber (requires field installation and additional wiring).
- Indicates lock energized when wired to lock input.
- Indicates de-energized/unlocked or “Enter/Go” when wired to optional timer module.
- Indicates energized and de-energized or “Enter/Go” when wired to access control auxiliary output.
- Indicates door is closed and locked and door is unlocked when wired to BA.
