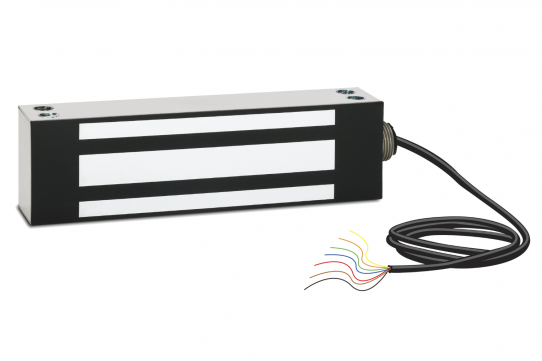

SDC 1570 series Weather Resistant Gate EMLock, 1200lbs
Overview
SDC Gate EMLock® provides 1200lbs of holding force and enables the access and egress control of pedestrian and vehicle gates. Access controls such as card readers, digital keypads and remote control stations provide gate and lock control.
Gate EMLocks are compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet.
SDC Gate EMLocks are totally sealed in an epoxy filled stainless steel case. A threaded conduit fitting ensures weather resistant protection of the wiring.
Product Details
SDC Gate EMLock® provides 1200lbs of holding force and enables the access and egress control of pedestrian and vehicle gates. Access controls such as card readers, digital keypads and remote control stations provide gate and lock control.
Models
- 1575U - Standard mounting with magnetic bond sensor. (U) indicates standard 630 Stainless Steel finish
- 1576U - Face drilled with magnetic bond sensor. (U) indicates standard 630 Stainless Steel finish
Specifications
- Holding Force: 1200lbs
- Input Voltage: 12/24 VDC; 450mA @ 12VDC; 225mA @ 24VDC
- Bond Sensor Output: 125mA @ 12/24VDC
- Wire Leads: 24 AWG, 3 foot long
- Conduit Fitting: 1/2 inch Length, 3/4 inch outside thread, 1/2 inch inside thread
Mechanical Specifications
- Lock: 8-11/16 inches L x 2-1/2 inches H x 1-5/8 inches D
- Armature: 7-3/4 inches L x 2-13/32 inches H x 5/8 inches D
- Case: Stainless steel
