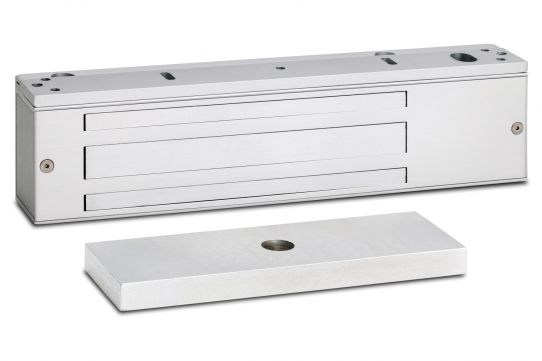

SDC 1581 EMLock, 650lbs Gr 1 Magnetic Lock
Overview
SDC 1500 series EMLocks® include a lifetime warranty and are available in 650lbs, 1200lbs, and 1650lbs holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks® are UL Listed and ANSI Grade 1 compliant.
Product Details
SDC’s patented EMLock® design represents the pinnacle of magnetic lock evolution. The modular EMLock® assembly makes them easy to stock, install, upgrade and maintain.
EmLock EZ Upgrade Kits
Field upgradeable by distributors, installers and maintenance staff. No need to ever remove a lock from the frame to upgrade or exchange internal components.
Upgrade Modules Include:
- Magnetic Bond Sensor
- Door Status Sensors
- Anti-Tamper Switch
Model
- 1581V (standard) Single EmLock - 650 lbs, V - aluminum finish
Specifications
- Input Voltage: Dual voltage Sensing 12/24 VDC
- 220mA @ 24VDC
- 440mA @ 12VDC
- Size: 8-3/4 inches L x 2-1/8 inches H x 1.25 inches D (222.2 x 54 x 31.8 mm)
Options
- D - Door Position Sensor: Indicates door open and door closed. SPDT Dry, 250 mA @ 30VDC.
- B - Magnetic Bond Sensor: Indicates locked and unlocked, low holding power, tampering and obstruction between armature and magnetic core. SPST N.O. Dry, 250 mA @ 30VDC.
- L - Bi-color Status LED Indicator: Field selectable Red, Green, or Amber (requires additional wiring)
- Indicates lock energized when wired to lock input.
Indicates de-energized/unlocked or “Enter/Go” when wired to optional timer module. - Indicates energized and de-energized or “Enter/Go” when wired to access control auxiliary output.
- Indicates door is closed and locked and door is unlocked when wired to BA.
- A - Anti-tamper Sensor: Indicates access cover removal. SPDT Dry, 1amp @ 30VDC.
UL294 Listed
Made in the USA
