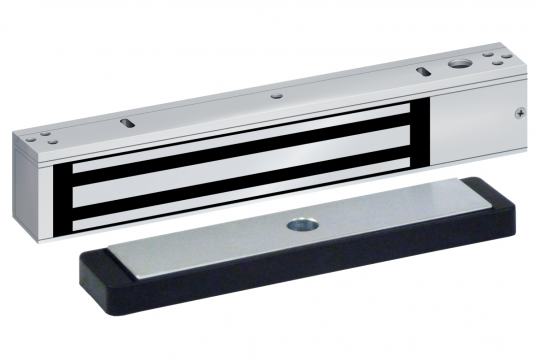

SDC 350 Narrow Line Single EMLock 1200lbs
Overview
The 350 series is specifically designed for high profile openings that require less obtrusive surface mount lock with architecturally superior appearance. Unlike typical surface mount magnetic locks that project 3 to 3-1/2 inches into openings, the SDC 350 Narrow Line magnetic lock projects only 2-11/16 into the opening, enabling it to blend in exceptionally well with virtually any narrow frame or doors with or without top rails.
Recommended for perimeter and interior doors and mantraps.
Standard Features:
- Door status, lock status and Bi-color LED
- Interlocking quick mount assembly
- Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
- Wire access chamber with terminal block
- Dual voltage 12/24VDC
- Retrofits Discontinued Locknetics 350+ utilizing the same mounting template, physical dimensions and features.
Product Details
The 350 EmLock retrofits the discontinued Locknetics 350+ magnetic lock without modifications. Since the Locknetics manufacturing facility is now closed, the SDC 350 EmLock has been designed to utilize the same mounting template, physical dimensions and features. Plus, the SDC 350 EmLock includes additional features such as full monitoring and EmLock Quick Interlocking Quick Mount Bracket for faster installation.
Standard Features
- Door status, lock status and Bi-color LED
- Interlocking quick mount assembly
- Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
- Wire access chamber with terminal block
- Armature housing prevents sagging, provides quieter operation and superior appearance
- Dual voltage 12/24VDC
- 628 Clear anodized aluminum
- Exceeds ANSI/BHMA A156.23 Grade 1
Model
- 350V - Single Narrow Line EmLock, 1200lbs holding force. LED Indicator, Magnetic Bond and Door Status outputs standard.
- TJ350 - Top Jamb Mounting Kit for inswing doors, Single *sold separately, optional
- HDB350 - Single glass door mount kit *sold separately, optional
Mechanical Specifications
- Holding Force: 1200 lbs / 545 kg
- Lock: 12-1/2 inches L x 2-1/8 inches H x 1-11/16 inches W (318 x 54 x 43mm)
- Armature: 10 inches L x 2 inches H x 3/4 inches D
Eletrical Specifications
- Voltage: Dual 12/24VDC
- Current: 540 mA @ 12VDC, 300 mA @ 24VDC
- Magnetic Bond Sensor: 1-SPDT output, 250mA max. @ 12/24VDC
- Door Status Sensor: 1-SPDT output, 250mA max. @ 12/24VDC
- LED Indicator: Green-Secure, Red-Unlocked
