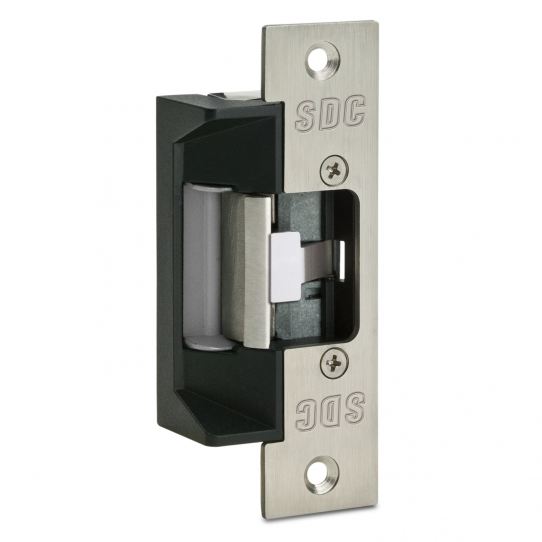

SDC 45 Series Commercial Grade Electric Door Strike
Overview
The SDC 45 electric strike is designed for use with locksets with up to 3/4 inch latchbolts*. The quality construction makes the 45 series ideal for high traffic applications. The compact low profile design enables quick and easy installation where jamb space is limited.
Choose from a Universal Electric Strike package that includes three faceplates or standard strike package with choice of 4 different faceplates to accomodate virtually any application. Full monitoring is standard.
Product Details
Universal application strike retrofit ANSI 4-7/8 inch strike prep without centerline relocation. Compatible with cylindrical locksets, mortise locksets with or without deadbolts, and mortise exit devices.
Product Overview
The SDC 45 Series electric strike is designed for use with locksets having up to 3/4 inch latchbolts. The compact low profile design with an internally mounted solenoid and mounting tabs enable quick and easy installation where jamb space is limited. The heavy duty construction makes the 45 Series ideal for high traffic installations. The strike is field selectable failsafe – failsecure as well as field selectable voltage 12/24V AC/DC.
- Centerline Electric Strike
- 4 Interchangeable Application Faceplates
- Full Monitoring is Standard, Including:
- Latched and Unlatched Status
- Keeper Closed and Deadlocked or Unlocked
- Keeper Open Status Optional
- Reversible Failsafe/Failsecure, no disassembly
- 1/4 inch Horizontal Alignment Adjustment
- Plated Architectural Finishes Available
Product Features
The SDC UniFLEX electric strike is designed for use with locksets with up to 3/4 inch latchbolts. The quality construction makes the 45 series ideal for high traffic applications. The compact low profile design enables quick and easy installation where jamb space is limited.
- For 5/8 inch latch or 3/4 inch latch with 1/8 inch door gap
- Latch position status standard
- Keeper closed and deadlocked/unlocked status standard
- Field selectable failsecure - failsafe
- Field selectable voltage, 12/24V AC/DC
- 1/4 inch Horizontal alignment adjustment
- Low profile, 1-3/16 inch deep
- Plug-in wire connectors
- Mounting tabs
- Non-handed
- All stainless steel parts with durable die cast body for corrosion resistance
- Fewer moving parts for maximum life
- Stainless steel standard with square corner faceplate
- Aluminum standard with radius corner faceplate
- ANSI/ BHMA A156.31, Grade 2
Models
- 45-4S 4-7/8 inch x 1-1/4 inch square corner faceplate
- 45-4R 4-7/8 inch x 1-1/4 inch radius corner faceplate
- 45-6R 6-7/8 inch x 1-1/4 inch radius corner faceplate
- 45-7R 7-15/16 inch x 1-7/16 inch radius corner faceplate
- 45-A Kit includes:
- 4-7/8 inch square corner faceplate
- 4-7/8 inch radius corner faceplate
- 7-15/16 inch radius corner faceplate
Latch Position Status Standard Keeper Closed and Deadlocked/Unlocked Status Standard.
Finish
- U - 630 Dull Stainless Steel (standard with 45-4S)
- V - 628 Dull Aluminum (standard with 45-4R, 45-6R and 45-7R) **Call for Special Finish Availability**
- Y - 335 Black Anodized
- D - 606 Dull Brass
- H - 613 Oil Rubbed Bronze
Options
- K Keeper open/closed status
- RMB Buzzer 12/24V AC/DC operation Electrical
Specifications
- Dual Voltage Coil: 280/140mA @ 12/24V DC
- 170/85mA @ 12/24V AC
- Latch Position Status (std): SPDT, Dry 3amp @ 30V
- Keeper Closed and Locked Status (std): SPDT, Dry 3amp @ 30V
- Keeper Open/Closed Status (optional): SPDT, Dry 3amp @ 30V
Dimensions
- 45-4S / 45-4R: 1-1/4 inch W x 4-7/8 inch H x 1-3/16 inch D (31.8 W x 124 H x 30.1 D mm)
- 45-6R: 1-1/4 inch W x 6-7/8 inch H x 1-3/16 inch D (31.8 W x 175 H x 30.1 D mm)
- 45-7R: 1-7/16 inch W x 7-15/16 inch H x 1-3/16 inch D (36.5 W x 201.6 H x 30.1 D mm)
