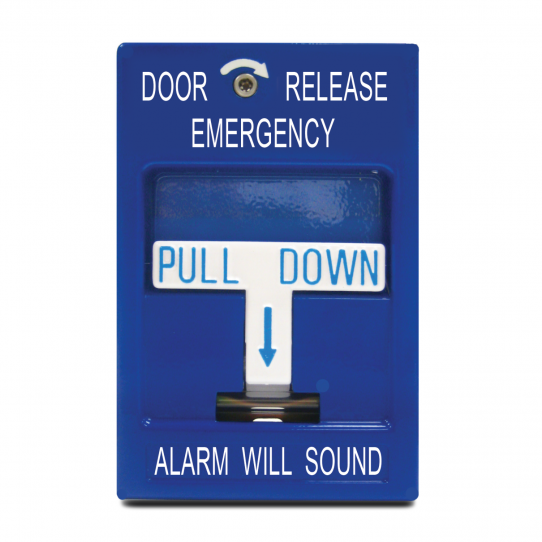

SDC 492 Emergency Door Pull Station

The SDC 492 Emergency Door Release Pull Station provides immediate unlocking of perimeter doors or interior doors that are equipped with fail-safe electric locks. The 492’s built in alarm may be used as a local door annunciator (no built-in siren on WP version) . The SDC 492 is specifically designed for emergency door release and may influence the approval of an electric locking system.

Product Overview

• Blue housing with easy to read activation instructions avoids confusion with red fire alarm stations.
• 2-SPDT 10amp Contacts; 1-SPDT for lock release and 1-SPDT auxiliary contact for remote monitoring, CCTV activation or alarm activation.
• The SDC 492 may initiate the release of an individual door or all doors on the same circuit.
• The SDC 492 may be mounted in a 2 inch deep single gang back box or double gang box with plaster ring cover.
• The SDC 492 may be surface mounted with a 492-BB surface mount back box.
• UL Listed (not UL294)

Dimensions

• 4.75 inch H x 3.25 inch W x 1.375 inch D

Models

• 492: Pull station emergency door release with siren 3V-28VDC, 18mA
• 492WP: Weatherized Pull station emergency door release, includes backbox (no built-in audio siren on WP version)

Options

• 492-GL4 Four replacement glass rods
• 492-BB Blue surface mount back box

Features

• Blue housing eliminates confusion with red fire alarm stations
• Easy to read activation instruction
• Integrated siren sounds upon activation (no built-in siren on WP version)
• Initiates release of individual door or all doors on same circuit
• Main contact for lock release
• Auxiliary contact for remote monitoring, CCTV or alarm activation
• Surface mount, single gang or double gang back box mount with plaster ring cover
• Two replacement glass pieces included

Made in the USA
