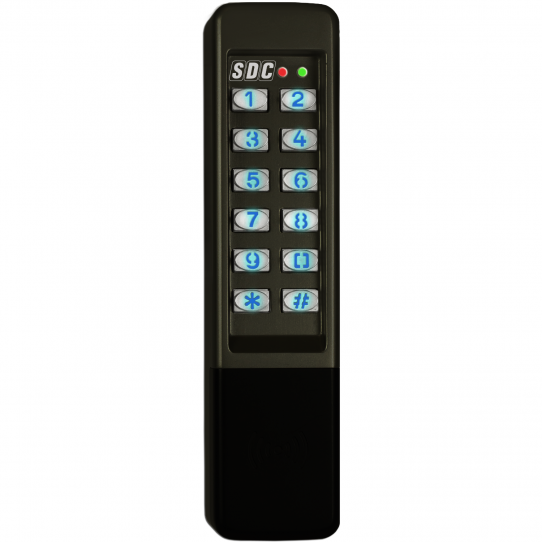

SDC 923 Narrow Keypad 500 Users (Prox Reader)

Product Overview

The SDC EntryCheckTM series consists of stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Optional Prox Readers are available for selective models

Features:

• Weather Resistant
• Heavy Cast Vandal Resistant Housing
• Heavy Cast Metal Blue Backlit Keys
• Keypad programmable
• 500 Users, 4-6 digit PIN codes
• 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)
• Assign entry PIN to relays 1 and/or 2
• LED Status: Access and lockout
• Tactile keys with loudness selectable audible volume for key depression or output activation
• Timed anti-passback and anti-tailgate
• Keypad tamper lockout
• Request-to-Exit/Enter input
• Choice of door sense/relay inhibit input functions Forced entry Door ajar Inhibit relay 1 or 2 second Auto relock when door closes
• Choice of 2 solid states outputs functions: Alarm shunt Forced entry Door ajar Tamper lockout Keypad active

923P Features 3 User Modes:

1. PIN or Card
2. Card Only
3. Card and PIN

Specifications

• Voltage 12/24 VAC/DC
• Current 30mA typical, 150mA maximum
• Outputs Relay 1 - SPDT 5amp @ 30VDC Relay 2 - SPDT 2amp @ 30VDC Switch to Common Outputs 3amp; 4– 100mA @ 30VDC
• Temperature -4ºF to +140ºF (-20ºC to +60ºC)
• Humidity 5% to 95% non-condensing
• Finish: Black Powder Coat Painted

Models

• 923 - Digital Keypad, 500 Users, 12/24 VAC/DC
• 923P - Digital Keypad, 500 Users, 12/24 VAC/DC with Prox Reader
