SDC EH Series Magnetic Door Holder & Releasing Device
Overview
SDC EH Series magnetic door holders, are designed to hold doors open and release the door by remote switch or fire life safety command center activation.
Primary application includes holding and releasing of fire rated doors that are required to provide a barrier for fire and smoke in an emergency or the convenience of door closure by remote control.
Made in the USA
Shipping on orders of single units may be delayed for up to 7 buiness days.
Replaces part number: DH24120FPC
Product Details
Product Overview
SDC EH Series magnetic door holders, are designed to hold doors open and release the door by remote switch or fire life safety command center activation. Primary application includes holding and releasing of fire rated doors that are required to provide a barrier for fire and smoke in an emergency or the convenience of door closure by remote control.
Models

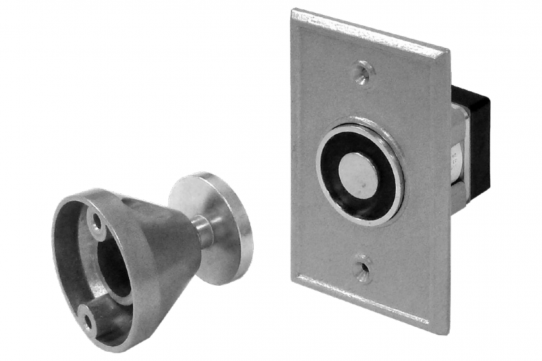

- EH10 - Flush Mount
- EH20 - Semi-Flush Mount
- EH30 - Surface Mount
- EH40 - Floor Mount
- EH42 - Double Floor Mount
Specifications
- Materials: Zinc alloy
- Voltage: Standard dual voltage AC or DC inputs of 12 and 24V, 24 and 120V, 24 and 220V models
- Holding Force: Typical holding force of 25-40 pounds performance value can be increased to 75 lbs or 110 lbs on special applications (see performance data)
- Mount: Single or double coil floor, surface, flush,and recessed mount
- Total Projection:
- Flush mount: 2-11/32 inches (60mm)
- Semi-Flush mount: 3-1/16 inches (78mm)
- Surface mount: 4-5/8 inches (117mm)
- Floor mount (single door): 5 inches (127mm)
- Floor mount (double door): 9-5/8 inches (244mm)
- Fasteners: Hardware package, mounting bracket
Finishes:
- Chrome Powder Coat
- 605 Brass Plated
- 625 Chrome Plated
- Black Powder Coat
Notes: Optional aluminum extension and misalignment rods available Drill fixture available Replacement catch plate and catch plate assembly available Adhesive template included
Product Use
SDC’s EH series magnetic door holders are designed to hold doors open and release the door by remote switch or fire life safety command center activation. Primary application includes holding and releasing of fire rated doors that are required to provide a barrier for fire and smoke in an emergency or the convenience of door closure by remote control.
- Door release and close upon power loss or fire safety systems activation
- Low power consumption
- Field selectable high holding force
- Dual AC/DC voltage confirgurations
- Screw terminal block input connections
- Self-aligning catch plate
- Adjustable magnet centerline
