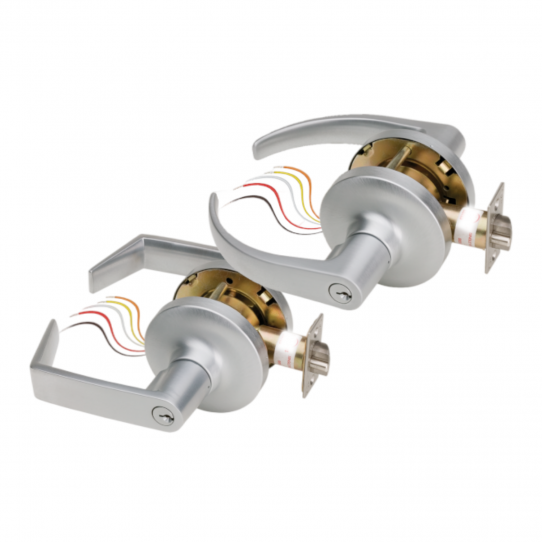

SDC Electra Pro Z7200 Elec. Cylindrical Locksets, Gr 1

$349.30 ~~$499.00~~

Overview

Electrified Cylindrical Locksets with Latch Status Output

Electra™ Pro Electrified Cylindrical Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.

Special Order Acknowledgment - Build-to-Order Equipment. Non-stock item, Non-Cancellable, Non-Returnable. *Typical 5-day build time before item will ship, lead-times may vary, contact us for current availability.

Specify Model: Z7250 - SDC failsafe, with Latch Status Output Z7252 - SDC failsecure, with Latch Status Output

Specify Lever Trim: G - Galaxy E - Eclipse

SPECIFY FINISH (NON-STANDARD FINISHES MAY ADD UP TO 4 WEEKS TO BUILD TIME):

Specify Cylinder (Schlage "C" Keyway) or I-Cores (Best "A" Keyway):

Optional Latch and Backset Assemblies: B1: 2-3/4" Backset Latchbolt (Standard) B2: 2-3/8" Backset Latchbolt + $30.00

Optional Strike Plates: ST1: ANSI 1-1/4" x 4-7/8" (Standard) ST2: T-Strike with dust box, 1-1/8" x 2-3/4"

Qty

Product Overview

Features

Latch Status output standard with all locksets
Dual Voltage 12 and 24VDC
Choice of failsafe or failsecure operating mode
Clutch allows the lever to operate while the door stays locked for increased vandal and abuse resistance
Independent power return springs for effective lever action and prevention of lever sag
SDC cylinder with 'C' keyway
Small format Interchangeable core (optional)
No exposed mounting screws
Strikes available to match existing frame preparation
Choice of seven architectural finishes
Exceeds ANSI A156-2 Grade 1 specifications
SDC lever handle styles comply with ADA easy access requirements and CSFM, California State Fire Marshal, Title 19

A Latch Status output is standard with all models. All standard locksets are supplied with a 6 pin cylinder with a Schlage "C" equivalent keyway.

Benefits

May be used in new or retrofit construction
Building and Fire Life Safety Code Compliance
Ideal for high usage environments
Retrofits existing mechanical lock prep

Building and Fire Life Safety Code Compliant

Electra™ Pro electrified cylindrical locks ensure that the door stays latched even when unlocked, maintaining fire door integrity. Electra™ Pro locksets comply with all national building and fire life safety code requirements for use on fire rated doors, including high-rise stairwell and elevator lobby doors where the use of electric strikes and magnetic locks is prohibited.

Security with Superior Aesthetics

Available in failsafe and failsecure modes to accommodate either security or fire life safety applications, Electra™ Pro Z7200 electrified locksets provide a superior appearance compared to exposed and vulnerable electric strikes and magnetic locks, while eliminating the need for request-to-exit devices.

Vandal Resistant Lever Handles Standard With SDC Brand Lockset. When locked, the built-in clutch permits the handles to operate without retracting the latch, reducing potential for damage.

Models

Z7250EQ, Z7250GQ - failsafe operation with Latch Status output, power required to lock lockset, Q standard dull chrome finish
Z7252EQ, Z7252GQ - failsecure operation with Latch Status output, power required to unlock lockset, Q standard dull chrome finish

*Special order finish options available, please call for current lead times

Also Known As

SZ-Z7250, SDC-Z7250, SZ-Z7252, SDC-Z7252

Finish

(selectable)

Manufacturer

SDC Security

Manufacturer Warranty

2 Year

Model Number

Z7200

Power Requirements

24VDC/12VDC

Status Monitor

n/a

UPC Code

712905475615
