SDC IPRW Wiegand Prox Reader, HID compatible (125 kHz) *DISCONTINUED*
Overview
**DISCONTINUED ITEM, SEE REPLACEMENTS BELOW**

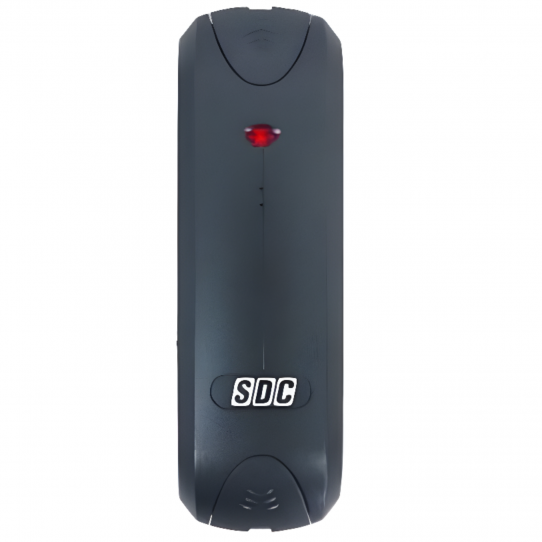

The SDC EntryCheck™ IPRW Wiegand proximity reader is a sleek, sophisticated reader that will interface with most access control systems. It combines a 125KHz HID-compatible proximity reader and standard 26-bit Wiegand output with compact design for surface or mullion mounting.
An IP67 rated housing makes the IPRW suitable for use in indoor or outdoor environments. An LED indicator lights red to indicate power, or green to indicate an authorized access (controlled externally by host).
The audible annunciator will indicate when a card is present or can be controlled externally. When paired with SDC's IP Pro™ Single Door Controller, compatibility is guaranteed.
Product Details
**DISCONTINUED ITEM, SEE REPLACEMENTS BELOW**
Product Overview
The SDC EntryCheck™ IPRW Wiegand proximity reader is a sleek, sophisticated reader that will interface with most access control systems. It combines a 125KHz HID-compatible proximity reader and standard 26-bit Wiegand output with compact design for surface or mullion mounting.
An IP67 rated housing makes the IPRW suitable for use in indoor or outdoor environments. An LED indicator lights red to indicate power, or green to indicate an authorized access (controlled externally by host).
The audible annunciator will indicate when a card is present or can be controlled externally. When paired with SDC's IP Pro™ Single Door Controller, compatibility is guaranteed.
Specifications
- Operating Voltage: 5 - 12 Volts DC Current
- Consumption: 40 mA (max)
- Operating Temperature: -4 to 122 F (-20 to +50 C)
- Dimensions (H x W x D): 4.75 inches x 1.5 inches x 0.625 inches
- Housing: Indoor/Outdoor (IP67) w/ potted electronics
- Cabling: 3m Pigtail lead
- Output: 26-bit Wiegand
- Max. Cable Distance to Host: 328ft (100m) @12VDC, 100ft (30m) @ 5VDC
- Recommended Cable: Belden 5504FE or 5506FE or equal
- HID-compatible (125Khz RFID)
