30% Off MSRP

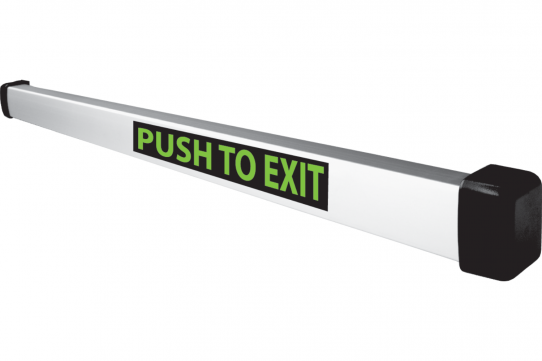

SDC MSB550 Series Non-Latching MicroSwitch Bar

$177.10 ~~$253.00~~

Overview

Equipped with a mechanical switch activated by only 1/8 inch bar movement, the MSB550 series provides an economical alternative where the safety release attributes of sense bars is not required.

Non-Latching Push Bar for:

Magnetic Lock Release
Access Control Request-to-Exit
Delayed Egress Trigger
Alarm Shunt
CCTV or Alarm Activation

*PT-2U Armored 18 inch power loop included, enables wiring from door to the frame.

Specify Finish (V & Y standard, all other special order 3-weeks):

Select Bar Length:

Options

2 SPDT Contacts - 2nd mechanical switch for dual-failsafe redundant operation; alarm shunt; or monitoring output. + $35.00

500GL-KIT - One glass door mounting kit with adhesive for eight to ten bars + $288.00

500GL-MB - One glass door mounting kit without adhesive + $160.00

500-SK - Shim kit used to raise bar from door. Recommended for wood or hollow metal doors with uneven mounting surface. + $31.00

PT-3V - Stainless steel armored loop with aluminum surface wire junction box + $56.00

Qty

Overview

Building codes essentially state that egress through access controlled doors must not require prior knowledge of operational requirements. Meeting this criteria, SDC’s MSB550 is designed to release electromagnetic door locks for uninhibited egress. When slight pressure is applied a microswitch is actuated, immediately releasing the electromagnetic door lock. The MSB5500 is an economical alternative to sensor activated bars.

Standard Features

Only 1/8 inch Total Bar Movement. The MSB550 has a maximum movement of only .125 inches (3.2 mm). Trigger activation to release the electromagnetic lock is quick and quiet.
Heavy Duty Construction The MSB550 utilizes heavy-duty aluminum extrusion and rugged end caps. The mounting assembly is all metal. The rigid construction prevents any malfunction due to sagging or warped doors or tweaked-glass door stiles.
Narrow Low Profile The MSB550 has a narrow profile with minimum projection from the door of only 1.875 inches (47 mm). The unobtrusive design is ideally suited for aesthetically superior glass openings.
Armored Power Loop. 18 inch flex stainless conduit included. The PT-2 enables wiring from the door to the frame.

Models

MSB550V 628 Aluminum Anodized
MSB550Y 335 Black Anodized
MSB550C 605 Polished Brass
MSB550S 629 Polished Stainless Steel
MSB550U 630 Brushed Stainless Steel

Specifications

Actuation: 1/8 inch total bar movement for mechanical switch actuation
Contact: SPDT, 5-Amp @ 30VDC (2nd switch optional)
Accessories Include: PT-2U Armored Power Transfer Loop

Features

Only 1/8 inch total bar movement
Slim low profile heavy duty design
5-Amp SPDT contact (2-SPDT contacts optional)
CSFM, California State Fire Marshal Listed
UL Listed, Access Control System Units & Burglary Resistant
UL294
Power transfer loop included

Also Known As

MSB550V, SZ-MSB550V, SDC-MSB550V

Manufacturer

SDC Security

Manufacturer Warranty

1 Year

Model Number

MSB550

UPC Code

712905177298

Datasheet PDF

Installation PDF

500GL-KIT Glass Mount Kit Installation PDF

Pricesheet PDF

2 Questions asked on SDC MSB550 Series Non-Latching MicroSwitch Bar • Ask a Question

Q Neil • 01/13/2023, 4:02:15 PM Can these be mounted outside on a gate for egress.

A 01/17/2023, 9:56:06 AM The standard MSB550 bar is not rated for direct outdoor usage. Please see the MSB550-2W version of this bar that features water sealed switches (IP67 rated). To go over this product in more detail or to get a complete system estimate put together please give us a call at 1-866-500-5625

Q Brendon Holmes • 08/20/2024, 12:12:00 PM What is the difference between the MSB550V and the MSB550V-W?

A 08/21/2024, 7:58:24 PM The standard MSB550V includes One SPDT switch and the bar is designed for interior/perimeter doors that will not experience direct water exposure. The MSB550V-W model features Two SPDT, Water Sealed (IP67 rated) Switches. These watertight switches make it a perfect companion for outdoor gate lock solutions.
