SDC PTM HD Series Electric Power Transfer Device
Overview

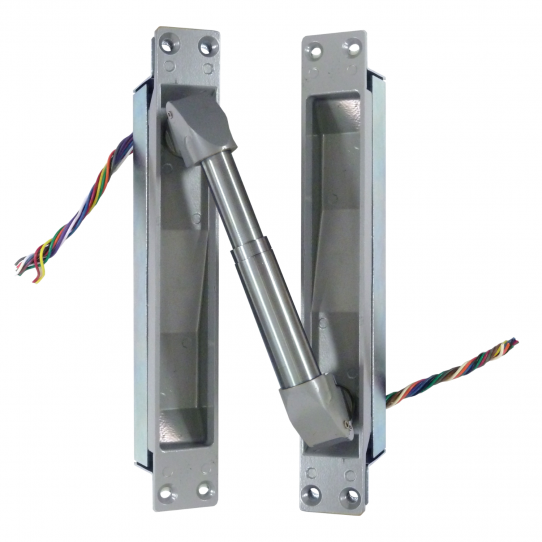

SDC heavy duty Electric Power Transfer Device provides a concealed and secure means of transferring electric lock and exit device power and signal wires from the frame to the door.
Completely concealed when the door is closed the PTM Electric Power Transfer Device is ideal for heavy traffic and applications requiring higher security to inhibit tampering and abuse.
Product Details
Product Overview
SDC heavy duty Electric Power Transfer Device provides a concealed and secure means of transferring electric lock and exit device power and signal wires from the frame to the door. Completely concealed when the door is closed the PTM Electric Power Transfer Device is ideal for heavy traffic and applications requiring higher security to inhibit tampering and abuse.
Features
- Power control input for electric locks and exit devices, locked, latched, mantrap, forced entry, open status signal wiring
- Mortise door and frame installation. The PTM is completely concealed when the door is closed.
- All metal design with stainless steel tubular wire transfer and heavy cast housing with steel back boxes provide weather and tamper resistance when door is open or closed.
- Fasteners for wood, steel and aluminum doors and frames included
- UL Listed Miscellaneous Fire Door Accessories
- UL 10C Listed for up to 3-hour Fire Rated doors and frames
- Classified according to Uniform Building Code (UBC)
- Standard 7-2, Fire Test of Door Assemblies (1997)
Models
- 2 Conductor: Two (2) 18 Gauge wires, 5amp @ 12/24 V AC/DC
- PTM-2AL: Aluminum Powder Coat, US28 equivalent
- PTM-2BZ: Dark Brown Powder Coat, US10B equivalent
- 10 Conductor: Ten (10) 24 Gauge wires, 1amp @ 12/24V AC/DC
- PTM-10AL: Aluminum Powder Coat, US28 equivalent
- PTM-10BZ: Dark Brown Powder Coat, US10B equivalent
Compatible Openings; 1-3/4 inch thick doors
- 0 - 180° opening swing with up to 3/4 inch offset pivots
- 0 - 180° opening swing with up to 5 inch wide butt hinges
- 0 - 130° opening swing with up to 5-1/2 inch wide butt hinges
- 0 - 130° opening swing with up to 6 inch wide butt hinges
Not Compatible with: Center Hung Doors, Swing-Clear Hinges, Pocket Pivots, Butt Hinges Larger Than 6 inch, and 1-1/2 inch Offset Pivots.
Housing Dimensions: 9 inch H x 1-1/4 inch W x 1-5/8 inch D (229mm x 32mm x 41mm)
Manufacturer Cross Reference
- SDC PTM-2
- Von Duprin EPT2
- Securitron CEPT-2
- SDC PTM-10
- Von Duprin EPT10
- Securitron CEPT-10
