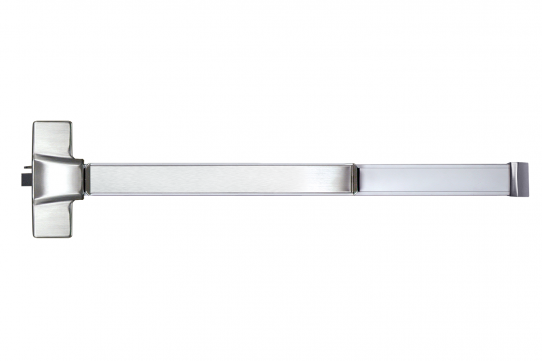

SDC Spectra S6101 Exit Only Push Bar (Dummy Trim Options)

$559.30 ~~$799.00~~

Overview

Application

•For use on single doors or pair of doors with mullion
•1-3/4 inch (44 mm) door thickness standard. Specify thickness other than 1-3/4 inch.
•RHR or LHR hollow metal, wood and mineral core doors.
•Minimum Stile Width : 4 1/2 inch (114 mm)

Special Order Acknowledgment - Non-Cancellable, Non-Returnable, Special Order Product. Lead-times may vary, contact us for current availability.

SPECIFY PANIC OR FIRE RATED:

Specify Finish:

Select Bar Length:

Select Dummy Trim Option:

Options

R Request-To-Exit Output, SPDT + $98.00

L Latch Status Output, SPDT + $98.00

Qty

Product Overview

The new mechanical SDC S6000 N6000 Spectra™ series panic and fire rated exit devices are available in rim mount, mortise, concealed and surface vertical rod configurations. Spectra Class mechanical exit devices are UL listed and ANSI A156.3 Grade 1 compliant and comply with all national and state building and fire life safety codes. The SDC Spectra series exit devices have a modern look and quiet push pad operation and area available in rim mount, mortise and vertical rod configurations.

Specifications

Head Cover: Zinc alloy or stainless steel
Chassis: Steel, plated
Housing: Extruded aluminum
Push Bar Base: Extruded aluminum
Touch Plate: Stainless steel
End Cap: Zinc alloy
Latch Bolt: Stainless steel, 3/4 inch (19mm) throw
Latch: Deadlocking, Stainless steel, 5/8 inch (16mm) throw
Strike: Stainless steel
Hand: Non-handed
Mounting: Machine screws standard. Sex bolts optional. Order “SNB” for wood or non-reinforced metal doors
Dogging: Allen-type key furnished
Finish: Seven popular finishes
Outside Trims: Order separately
UL Listed: ANSI/BHMA Grade1 Panic Exit Hardware, 3-Hour Fire Exit Hardware
