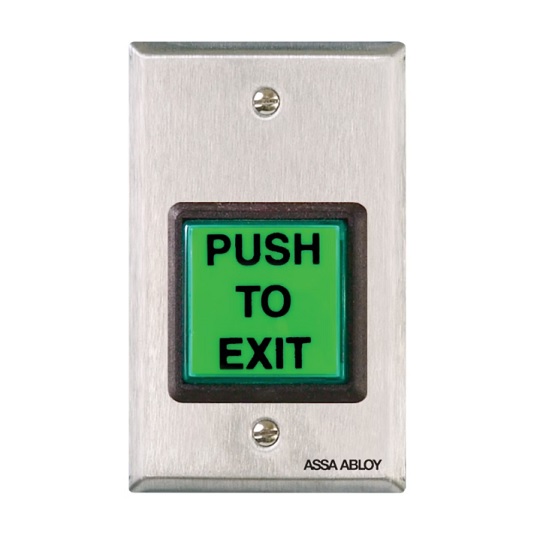

Securitron, EEB2 Exit Button with Integrated Timer, 30-second fixed

Product Overview

Emergency Exit Buttons offer additional safety, as required by code, for possible malfunction of motion exit sensor.

The Securitron EEB2 features a 3A switching capacity and a timer set for 30 seconds. These units are intended only for release of a magnetic lock from the inside of a door. When the button is pressed, the lock releases for 30 seconds. If pressed again during the 30-second lock release period, the unit will “retrigger” starting a new 30-second lock release period.

These buttons are specifically intended for installation on access controlled egress doors, as described in the International Building Code (IBC). Check your jurisdiction for applicable IBC codes.

A motion detector, such as the Securitron Model XMS2, is the primary means of magnetic lock release on the door. The Securitron EEB2 exit button is employed as a backup means of releasing the lock in case of a problem with the motion detector. It should be noted that the exact release time will vary with temperature, but it will not be less than 30 seconds.

Standard Features

• Momentarily pressing the button releases door for 30 seconds
• Retriggerable
• Single Gang Mount
• Includes (3) switchable lens: Green, Red and Blue ADA

Technical Specifications

• SPST 3 Amp wet N/C contacts
• Operates on 12 or 24 VDC (must be same voltage as the installed lock)
• Indoor Use Only
• UL294*

*Note: Securitron’s UL294 certification indicates that when the EEB is used with the XMS Motion Sensor, it meets the NFPA Life Safety Code 101 requirements for exit of access-controlled egress doors.
