Single Door Magnetic Lock kit for Aluminum framed glass storefronts

Product Overview

Acess control system inlcudes the slimline 350v magnetic lock with 1200lbs of holding force, PIN/Prox reader for entry, Request to Exit devices and Power Supply with battery backup.

The remote release button can be wired to allow door release from almost anywhere in the building. Great for the Narrow Stile Aluminum doors that are common in small businesses and school type settings.

Power supply with battery backup ensures your door remains secure and all system components remain operational for around 7-1/2 hours in the event of a power failure.

Features

• PIN, Prox card or PIN + Prox card entry
• 2000 user capacity
• All programming is done through the keypad
• 1 form C relay
• Electronics are epoxy sealed, (will accept PIN codes and Prox cards while completely submerged in up to 1 meter of water)
• Metal vandel resistant construction, includes security screws and built in anti-tamper alarm
• 5 PCS-1 Prox cards included with keypad purchase

Specifications

• Keypad Dimensions: 4.72 inch L x 2.99 inch W x 1.46 inch D
• 350v Lock Dimensions: 12-1/2 inch L x 2-1/8 inch H x 1-11/16 inch D
• Power Supply Specifications: 1.2amp at 12VDC for single door, 2.5amp for double
• Estimated Battery Backup Life (SLA1055) with single maglock system: 7 1/2 hours

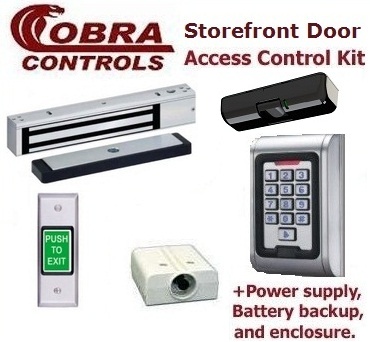

Storefront Kit Includes

• 1 each CC-3800 Weather Proof, Indoor/Outdoor, Digital keypad + proximity reader
• 5 each PCS-1 proximity cards

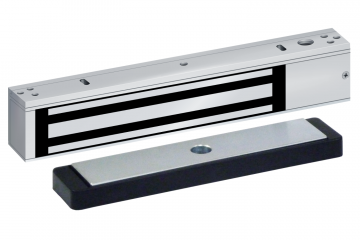

• 1 each 350V slim line magnetic lock for outswing doors*
• 1 each PS520W Request to exit motion detector

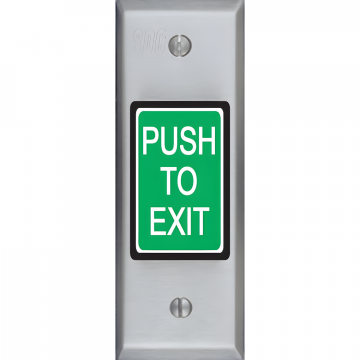

• 1 each 412N Narrow Request to exit pushbutton

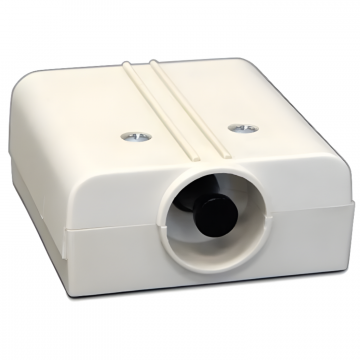

• 1 each HUB2SA under desk mount remote release button
• 1 each MC-1 Power supply 12VDC 1.2amp power supply and metal enclosure
• 1 each SLA1055 12VDC backup battery (included with MC-1 power supply)

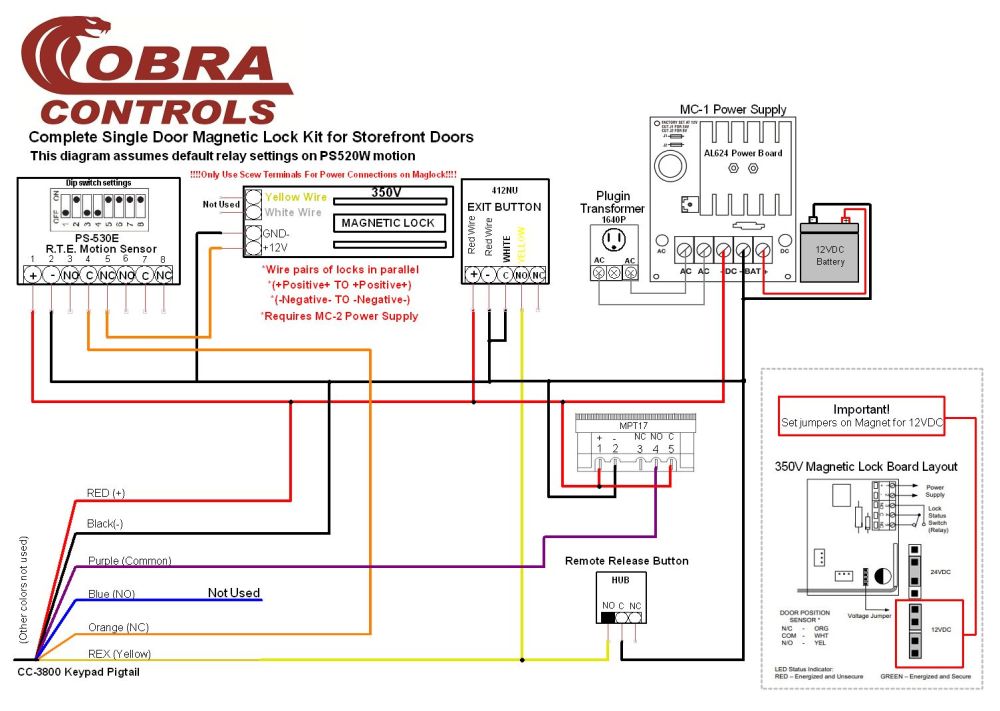

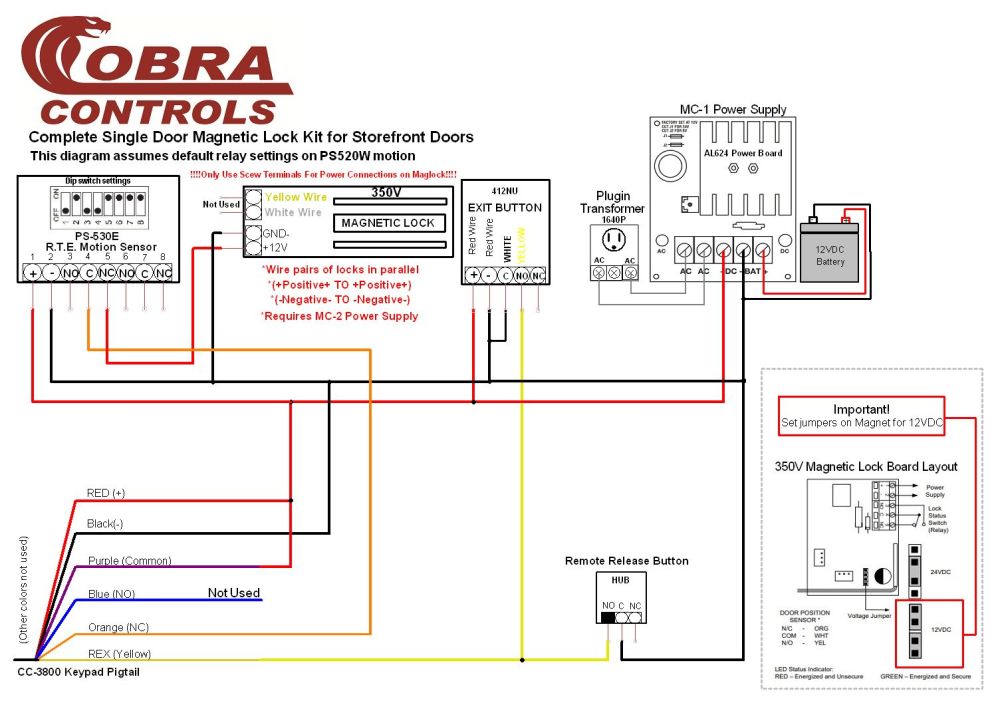

• 1 each Complete wiring diagram and 100% free over the phone tech support!!

*The included 350v maglock is designed for aluminum framed glass storefront doors. Electric strike is also available and standard conventional maglocks. Compatibility depends on your door type. Please contact us for lock selection if you are not sure.*

For assistance with this kit please use the Live Chat feature or Call us Toll Free at 1-866-500-5625
