20% Off MSRP

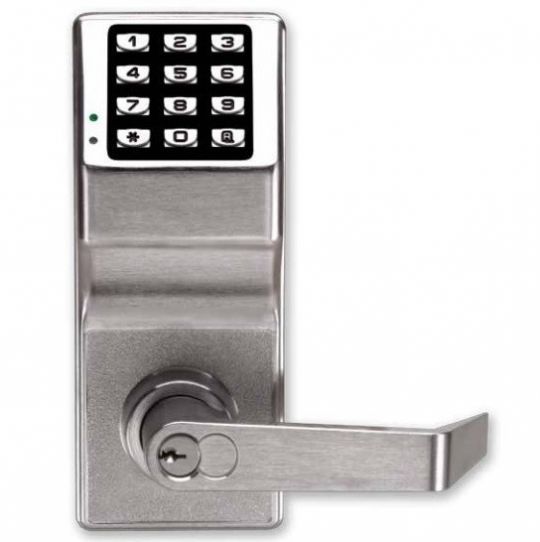

Trilogy T2 DL2700WP Battery, Single Latch, 100 user. Weather

$769.25 ~~$961.56~~

Overview

Weatherized Version of the popular Trilogy T2 DL2700 battery powered lockset. The DL2700WP offers the same great features in an easy to install package as the DL2700 but is designed for outdoor use applications.

Features:• Up to 100 user codes
• Multi-level user codes
• Uses standard AA batteries x 5
• Mechanical key override included
• Easy to install in about an hour
• Grade 1 BHMA Certified durability
• WP, water-sealed for outdoor use

Product Overview

Trilogy T2 DL2700WP Battery, Single Latch, 100 user. Weather

OPERATION:Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.

DOOR THICKNESS: 1 5/8 inches to 1 7/8 inches. Other thicknesses. Please consult Alarm Lock.

BACKSET: 2 3/4 inches Standard. 2 3/8 inches backset also available.

KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.

STANDARD KEY OVERRIDE CYLINDERS:Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.

LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2 inch throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.

STRIKE: 1 1/8 inches x 2 3/4 inches T strike and 1 1/4 inches x 4 7/8 inches ASA strike inc

LATCH FRONT: 1 1/8 inches x 2 1/4 inches wrought brass or stainless steel.

HANDING: Non-handed.

FINISHES: US3 polished brass, US26D satin chrome, US26 polished chrome, US5 antique brass, 10B Duronodic.

POWER: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor.

DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.

COMPLIANCES: Grade I, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.

WP Model for weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151°F to -31°F (+66°C to -35°C)

Also Known As

ALA100DL2700WPUS26D, DL2700WPUS26D

Finish

Satin Chrome

Manufacturer

Alarm Lock

Model Number

DL2700WP

Power Requirements

Battery

Status Monitor

n/a

UPC Code

785026045074

Datasheet PDF

1 Question asked on Trilogy T2 DL2700WP Battery, Single Latch, 100 user. Weather • Ask a Question

Q Johnny Daugherty • 11/06/2018, 9:39:55 AM I have fire egress lock requirements for exiting our facility. What system will I need to stay compliant and have a stand a loan password security lock. At this time we have the need of 3 lock systems. What can i use all door locks will be out side. We have around 30 associates.

A 12/03/2018, 11:59:19 AM As your calendar permits, please contact our Customer Service Advisor team (M-f (9:00am to 6:00pm EST) toll free at (866) 500-5625. They would be happy to assist in the design and product selection. The service is free and it would provide you with recommendations and options for your project. No obligation to purchase from us. However, if the project specifications achieve your needs, we would welcome the opportunity to provide the equipment. Give us a call (866) 500-5625.
