20% Off MSRP
V2M1200 Vista Series Magnalock, 1200lbs
$228.00
$285.00
Overview
1200 lbs. holding force maglock with field selectable dual voltage. Recommended for interior and perimeter security doors.
Features:
- Built-in arc suppression
- Easy Mount Bracket
- Instant release (no residual magnetism)
- Optional Bond Sensor available
- Wire Access Chamber with Plug-In connectors
- Dual voltage 12/24VDC
- Brushed Aluminum Finish
- UL Listed - UL and Canadian UL listed, R16759
Product Details

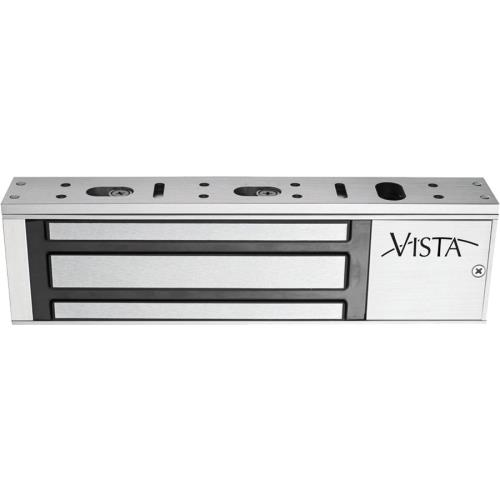

V2M1200 Vista Series Magnalock, 1200lbs
Product Overview
1200 lbs. holding force maglock with field selectable dual voltage. Recommended for interior and perimeter security doors.
Product Features
- Built-in arc suppression
- Easy Mount Adjustable Bracket
- Instant release (no residual magnetism)
- Optional Bond Sensor available
- Wire Access Chamber with Plug-In connectors
- Dual voltage 12/24VDC
- Brushed Aluminum Finish
- UL Listed - UL and Canadian UL listed, R16759
Specification Data
- Holding Force: 1200 lbs [544 kg]
- Voltage: 12 or 24 VDC (field selectable)
- Current Draw: 400mA at 12VDC, 200mA at 24VDC
- Operating Temperature: +14 to +131F [-10 to +55C]
- Dimensions:
- Magnet: 10-1/2 inches L x 2-7/8 inches H x 1-1/2 inches W
- Armature: 7-3/8 inches L x 2-3/8 inches H x 9/16 inches W
- Shipping Weight: 8 lbs.
Models
- V2M1200 (Vista Model V2M1200 Maglock)
- V2M1200DB (V2M1200, Door Position Switch, Magnetic Bond Sensor)

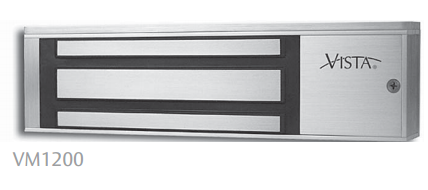

*Replaces discontinued part numbers VM1200 and VM1200DB
Warranty
Also Known As
SEC100V2M1200, SN-V2M1200, HES-V2M1200Finish
AluminumManufacturer
SecuritronManufacturer Warranty
1 YearModel Number
V2M1200Power Requirements
24VDC/12VDCStatus Monitor
OptionalUPC Code
784607044635
1 Question asked on V2M1200 Vista Series Magnalock, 1200lbs •
Q
Darrick Rishton • 04/13/2022, 11:29:50 PM
Is this lock UL 294?
A
04/14/2022, 10:36:08 AM
This lock is listed as "UL Listed - UL and Canadian UL listed, R16759" but it is not shown as UL 294. For a 1200lb magnetic lock that is UL 294 listed, please see the MG1200 or M62
