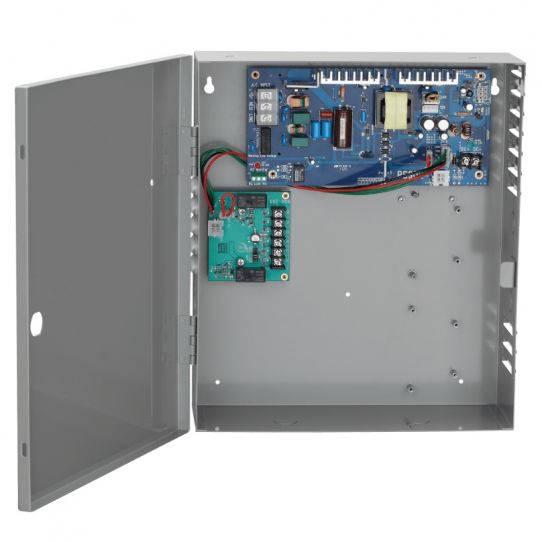

Von Duprin, PS902-2RS Power Supply 2amp 12/24 with 2 Relay Distribution Board
Processing...

20% Off MSRP

Von Duprin, PS902-2RS Power Supply 2amp 12/24 with 2 Relay Distribution Board

$524.00 $655.00

Overview

Von Duprin PS900 Series power supplies offer a high degree of configurability to address the changing needs of the electronic access control market. The PS900 Series power supply all share polarized option board connections, a universal input range of 120 VAC to 240 VAC, and a consistent output rating at both 12v and 24v settings. When a signal is provided, a new fire alarm interface board mounting enables outputs to be specified as switched (power cut) or unswitched (power continues).

More Info +


Qty

Product Details

Product Overview

Schlage PS900 Series power supplies offer a high degree of configurability to address the changing needs of the electronic access control market.

Designed with versatility and reliability in mind, they can be factory ordered to meet specific needs or configured in-field using a wide selection of option boards.

Model

  • PS902-2RS: 2 Amp Class 2 filtered and regulated power limited output with 2RS 2 Relay Distribution board

(additional accessory boards sold-separately)

Product Features

  • 2RS - 2 Relay option board included (pre-installed)
  • Provides low-voltage, Class 2, filtered and regulated power
  • UL 294

Specification Data

  • Voltage Adjustment: 12V/24V jumper selectable
  • Input Voltage: 120/240 VAC, 50/60 Hz, universal input
  • Output Current: 2 amp
  • Operating Temperature: +32 to +120F [0 to +49C]
  • Enclosure: 14 inches H x 12 inches W x 4 inches D

Summary Technical Specifications

  • Width: 12 inches Width (mm): 304.8
  • Depth: 4 inches Depth (mm): 101.6
  • Weight (Approximate): 9 lb Weight (Approximate) (g): 4082.331
  • Grade: Grade 1
  • Environmental Certification: RoHS
Also Known As
VN-PS9022RS, PS9022RS
Manufacturer
Von Duprin
Model Number
PS902-2RS
Power Requirements
24VDC/12VDC
UPC Code
999999435650
Usage
Interior Use Only
